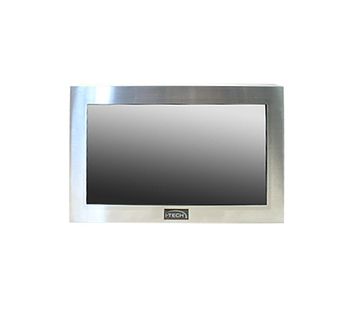

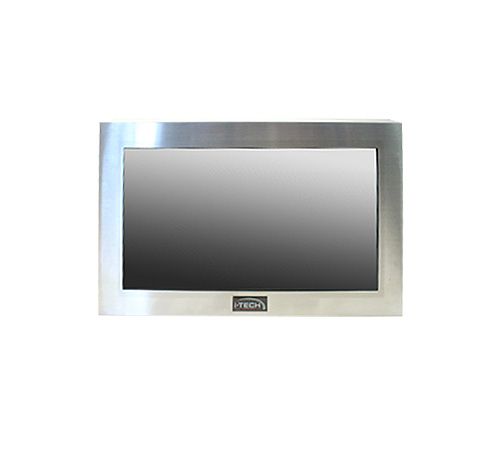

21.5" Full lP66/NEMA4X Stainless Steel chassis LCD, HDMI, 2 Point PCT Touch USB, 9-36VDC (Model: SCHW2150-SIP-PCT-CB01)

Rugged Completely Sealed Full lP66/NEMA4X Stainless Steel chassis/Surface Mount 21.5" LCD Monitor, 1920 x 1080, 300nits, Waterproof I/O input: HDMI x 1, USB Touch x 1, DC power x 1. 1x Side USB connector + 1 x Rear USB Pass Through. 2 point projected capacitive touch USB controller. DC-DC input Include IP66 Cables 5M USB + 5M HDMI and 5M power (9-36VDC)

Overview
Specifications
Download

The 21-inch Full IP66/NEMA 4X Stainless Steel Chassis LCD Monitor (SCHW2150-SIP-PCT-CB01) from iTech is engineered for harsh and demanding industrial environments. Designed with a rugged stainless steel enclosure, full IP66 protection, and projected capacitive touch technology, this display delivers reliable performance in applications where durability, hygiene, and weather resistance are critical. Ideal for food processing, manufacturing, marine, and outdoor control systems, it provides clear visuals, flexible connectivity, and long-term operational stability.

Features:

21.5" TFT LCD Monitor
Full HD Resolution: 1920x1080
300 nits brightness for clear visibility
2-point Projected Capacitive Touch with USB touch controller
Waterproof I/O Ports, including: 1x HDMI, 1x USB Touch, 1x DC Power
Additional Connectivity: 1x Side USB Connector, 1x Rear USB Pass-Through
DC-DC Power Input (936VDC)
IP66-Rated Cables Included: 5M USB cable, 5M HDMI cable, 5M Power cable (936VDC)

Cell Type	TFT LCD
Glass Surface	Black Anti-Glare, low reflection coating
Aspect Ratio	Wide
Size	21.5" viewable diagonal area
Active Area	476.64(H) x 269.11(V) mm
Pixel Pitch	0.248(H) x 0.248(V) mm
Native Resolution	1920(H) x 1080(V)
Colors	16.7M
Brightness	300
Contrast	1000 : 1
Response Time	≤ 5 ms
Viewing Angle (typical)	H. 170°(- 85°~ + 85°) , V. 160°(- 80°~ + 80°)
Light Source	LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
HDMI x 1, USB Touch x 1, DC power x 1. 1x Side USB connector + 1 x Rear USB Pass Through
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
DC-DC Power Input (9-36VDC)
POWER CONSUMPTION
Operation / Power Saving	26.25 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity	-20°C ~ 60°C (-32°F ~ 122°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical
Carton	W x H x D = TBD
WEIGHT
N.W. / G.W.	8 Kgs/ 9 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

TOUCH	VIDEO INPUT	ENHANCED PANEL	POWER	OTHERS
Resistive Touch	AV-IN	High Brightness Panel	24V DC-IN	Motion Sensor
Projected Capacitive Touch	AV Looping	Sunlight Readable	9~36V DC-IN	Light Sensor
Infrared Touch	HDMI / DP	Wide Viewing Angle	48V 72V DC-IN	VR-knob Dimming
Protected Glass	HD-SDI	Wide Temperature	90V 125V DC-IN	RS232 Remote On/Off
Optical Bonding		UV Film	110V 220V DC-IN	Military Connector: MIL 38999
		Anti-Vandal		Metal Connector: M12 / M16
				Stainless 316 Enclosure
