Front IP65 21.5" 1000nits Panel Mount w/ VGA+DVI+HDMI, AC 90~264V Power Input (Model: YPMW2150HBV2)

Front IP65 21.5" 1000nits Panel Mount Metal-5mm Front Bezel with VGA+DVI+HDMI, AC 90~264V Power Input

Front IP65 21.5" 1000nits Panel Mount Metal-5mm Front Bezel with VGA+DVI+HDMI, AC 90~264V Power Input

Inquiry/Quote Request
21-inch-front-ip65-panel-mount-metal-5mm-front-bezel-ypmw2150hbv2
  • Overview
  • Specifications
  • Download

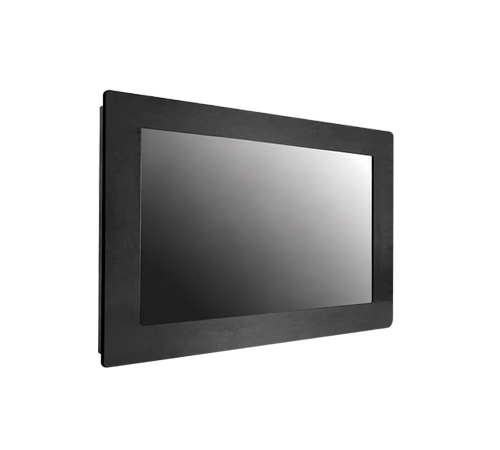

The YPMW2150HBV2 is a 21.5-inch industrial panel mount monitor designed for demanding applications requiring a durable display with high brightness and reliable performance. It features a 5mm metal front bezel with IP65 protection, providing resistance against dust and water from the front of the monitor.

With a Full HD 1920 x 1080 resolution and 1000-nit high brightness display, the monitor delivers clear and visible images in bright industrial environments. It provides flexible connectivity through VGA, DVI, and HDMI inputs, while the built-in front OSD controls allow convenient adjustment of display settings.

Designed for industrial integration, the YPMW2150HBV2 supports panel mounting and operates on a wide AC 90–264V power input. Its rugged metal construction and front IP65 protection make it suitable for factory automation, control systems, machinery, production lines, and other industrial applications.


Features:
  • 21.5" Panel-Mount LCD Monitor - 1920 x 1080, 1000 nits, 5mm Metal Front Bezel
  • Front Protection - IP65, AR-Coating Glass
  • Video Inputs - VGA + DVI + HDMI
  • Front OSD - Direct Brightness Adjustment
  • Power - AC 90–264V Input
  • Housing - Black Powder Coating
  • Mounting - VESA Mount Support
SYSTEM SPECIFICATIONS
Panel Type 21.5-inch TFT LCD
Screen Diagonal 21.5-inch
Active Display Area (mm) 476.64 (H) x 268.11(V)
Pixel Pitch (um) 248.25 x 248.25
Number of Pixels 1920 x 1080
Contrast Ratio 5000: 1
Color Arrangement R.G.B. Vertical Stripe
Brightness (cd/m˛) 1000 cd/m˛
Viewing Angle(Typ.) 178/178 (H/V)
Signal Connector VGA+DVI+HDMI
Power Source AC 90~264V Power input
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ +50°C
Storage Temperature -20 ~ +60°C
