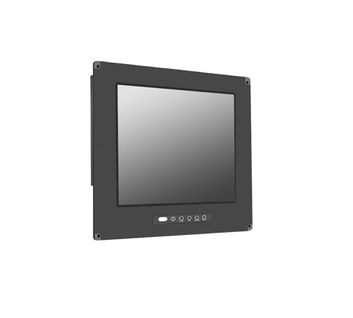

2K Flush Mount, 4:3, 21.3" LCD Monitor LED-800nits, VGA input, AC-IN w/ Built-in PWR, NON TOUCH (Model: EFMF2130V)
Flush Mount, 4:3, 21.3" LCD monitor, 2048x1536 LED-800nits, VGA input, AC-IN w/ Built-in PWR, NON TOUCH
EFMF2130V
- Overview
- Specifications
- Download
| Cell Type |
TFT LCD |
| Glass Surface |
Black Anti-Glare, low reflection coating |
| Aspect Ratio |
4:3 |
| Size |
21.3" viewable diagonal area |
| Active Area |
433.152(H) x 324.864(V) mm |
| Pixel Pitch |
0.2115(H) x 0.2115(V) mm |
| Native Resolution |
2048(H) x 1536(V) |
| Colors |
1.07 B |
| Brightness |
800 |
| Contrast |
1200 : 1 |
| Response Time |
≤ 25 ms |
| Viewing Angle (typical) |
H. 170°(- 85°~ + 85°) , V. 160°(- 80°~ + 80°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
|
| |
| CERTIFICATION |
| FCC , CE |
| INPUT TERMINALS |
| VGA, 1x PC Audio (Stereo Headphone Jack) , 1x DC Power Plug |
| CONVENIENT FEATURES |
| Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| POWER |
| Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz |
| POWER CONSUMPTION |
| Operation / Power Saving |
111.25 watt , < 1 watt (Support DPMS) |
| OPERATING CONDITION |
| Temperature / Humidity |
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| STORAGE CONDITION |
| Temperature / Humidity |
-20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation) |
| DIMENSIONS |
| Physical |
Please refer to Drawing |
| Carton |
TBD |
| WEIGHT |
| N.W. / G.W. |
9 Kgs/10.5 Kgs |
| CONTAINER LOADED |
| 20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| |
| VIDEO INPUT |
ENHANCED PANEL |
POWER |
OTHERS |
| AV-IN |
High Brightness Panel |
24V DC-IN |
Motion Sensor |
| AV Looping |
Sunlight Readable |
9~36V DC-IN |
Light Sensor |
| HDMI / DP |
Wide Viewing Angle |
48V 72V DC-IN |
VR-knob Dimming |
| HD-SDI |
Wide Temperature |
90V 125V DC-IN |
RS232 Remote On/Off |
| |
UV Film |
110V 220V DC-IN |
Military Connector: MIL 38999 |
| |
Anti-Vandal |
|
Metal Connector: M12 / M16 |
| |
|
|
Stainless 316 Enclosure |
|
