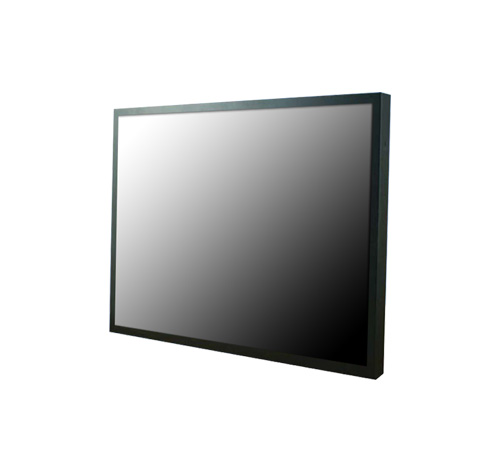

21.3" Chassis LCD Monitor w/ VGA+DVI+HDMI, 10-Points PCAP Touch w/ USB Controller (Model: YCH2130-TC)
21.3" Chassis LCD Touch Monitor / 1600x1200 / 500nits LED / VGA+DVI+HDMI Signal Input / DC 12V Power Input / 10-Points PCAP Touch with USB Controller / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 21.3-inch Chassis LCD Monitor with 10-Point PCAP Touch (YCH2130-TC) is engineered for industrial and commercial applications requiring responsive multi-touch interaction and reliable display performance. Featuring a 1920 x 1080 Full HD resolution, projected capacitive (PCAP) touch technology, and VGA, DVI, and HDMI connectivity, this rugged monitor integrates seamlessly into automation systems, kiosks, medical equipment, manufacturing environments, and industrial control panels. Its durable metal chassis, VESA mounting support, and high-quality display deliver dependable operation in demanding applications while providing an intuitive multi-touch user experience. |
Features: |
|
| Item | Specification |
| Panel Type | 21.3-inch TFT LCD |
| Screen Diagonal | 21.3-inch |
| Active Display Area (mm) | 432.0 x 324.0 |
| Pixel Pitch (mm) | 0.270 (H) x 0.270 (V) |
| Number of Pixels | 1600 (x3) x 1200 |
| Contrast Ratio | 1800:1 |
| Display Color | 16.7 M Colors ,True 8 Bit (RGB) |
| Brightness (cd/m) | 500nits |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | VGA+DVI+HDMI |
| Power Source | DC 12V Power Input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ +50°C |
| Storage Temperature | -20 ~ +60°C |
| Plug & Play | VESA DDC 1/2B |
| Speaker | 2 Watts x 2 |
