9U Rackmount 20.1" 1600x1200, 300nits w/ AR Glass, Front IP65 Speakers, VGA, DVI, HDMI and 100-240VAC (Model: CRM920H)

9U Rackmount 20.1" 9U Rack mount (with 3mm front bezel), 1600x1200 300nits AR Glass / Front IP65, Front OSD Design, Speakers, VGA, DVI, HDMI and 100-240VAC

9U Rackmount 20.1" 9U Rack mount (with 3mm front bezel), 1600x1200 300nits AR Glass / Front IP65, Front OSD Design, Speakers, VGA, DVI, HDMI and 100-240VAC

Inquiry/Quote Request
CRM920H
  • Overview
  • Specifications
  • Download

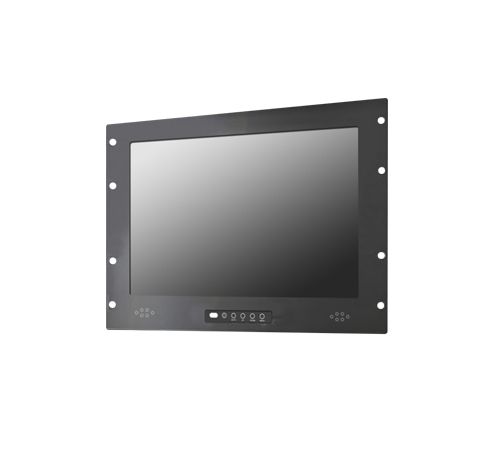

The 20" 9U Rackmount LCD Monitor Front IP65 (CRM920H) from i-Tech is a high-performance industrial display designed for harsh and mission-critical environments. Built with rugged construction and a robust IP65-rated front panel, this 9U rackmount monitor delivers crisp 1600x1200 resolution visuals and reliable connectivity for applications including industrial control rooms, server monitoring, broadcast systems, and security operations. With flexible video input options and enhanced front protection against dust and water, the CRM920H offers durability and exceptional performance for demanding rackmount deployments.


Features:
  • 20.1" industrial panel / 1600 x 1200 / 300nits / LED backlight
  • 9U Rack Mount ( with 3mm front bezel )
  • W/O Handles
  • AR Glass / Front IP65 / Front OSD Design
  • Speakers
  • All Black Powder Coating
  • I/O: VGA, DVI, HDMI and 100-240VAC Power Input
Display Viewing Size Image 20.1"
Active Display Area (mm) 20.1 inches( 510.54mm ) diagonal
Pixel Pitch (mm) 0.255 (H) x 0.255(V)
Resolution 1600 x 1200
Contrast Ratio 800 : 1 (typ.)
Color 16.7M
Brightness 300
Viewing Angle -89~89 (H) ; -89~89 (V)
Recommended Resolution 1600 x 1200 @ 60Hz
Signal Connector VGA, DVI, HDMI

Power Source 100-240VAC Power Input
Consumption 36.05W   typical, normal operation
Management VESA DPMS Compliant
