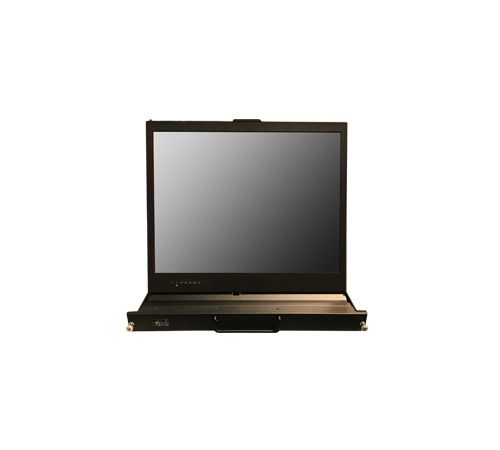

20.1" Pivot Display Drawer w/ Rugged General Device C300 Mil, VGA, HDMI, Display Port (Model: DRP120-V4)
Lay Flat 22" Chassis with Rugged General Device C300 Mil, Spec Rails LCD: 20.1" LG High Bright Panel 1000Nits LCD with 1600x1200 UXGA, Controller: (V33xA) VGA, HDMI, Display Port, Front: Front Face
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The DRP120-V4 is a space-saving 20-inch pivot display drawer designed for rackmount installations in mission-critical environments. Featuring a fold-down LCD screen with a pivot mechanism, this unit allows for easy viewing angles while maximizing space in 19” racks. Ideal for IT server rooms, broadcast control rooms, military applications, and industrial automation, the DRP120-V4 offers a reliable and compact visual interface with rugged construction and high display clarity. |
Enclosure |
|
Display |
|
Video Controller |
|
Power |
|
Options |
|
| Monitor Size | 20.1" |
| Display Type | UXGA, Color, TFT-LCD |
| Max Resolution/Refresh | 1600x1200 |
| Aspect Ratio | 4:3 |
| Display Colors | 16.78M |
| Brightness (Nits cd/m2) | 300 |
| Contrast Ratio | 800:1 |
| Response Time (Tr/Tf)(ms) | 8 ms GTG (Avg. Typ) |
| Pixel Pitch (HxW)(mm) | .255 x .255 |
| Power Management | EPA energy star, VESA compliance |
| Viewing Angle (Deg) | 89/89/89/89 |
| MTBF (Hours) | 30,000-50,000 |
| Surface Treatment | Hard-coating (3H), Non Glare treatment |
| Temperature Operating (C) | 0 to +50 Deg C. |
| Temperature Storage (C) | -20 to +60 Deg C. |
| Altitude Operating (Ft) | 12,000 |
| Altitude Storage (Ft) | 40, 000 |
| Humidity Operating (%RH) | 5 to 90 |
| Humidity Storage (%RH) | 5 to 90 |
| Video Controller: | VGA, HDMI (no HDCP), Display Port 1.2a |
| * OSD (On Screen Display) monitor controls | |
