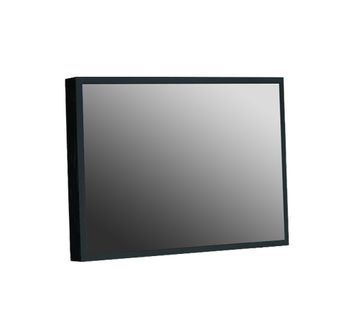

20.1" Industrial Panel Front IP65, w/ VGA, DVI, USB (Touch) and 100-240VAC, Resistive Touch (Model: OCH2000T-TCU-C)
20.1" 1600x1200 Resistive Touch Panel, 300 nits, Front IP65, VGA/DVI/USB, AC Power, Black Chassis, Wall-mountable.
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The OCH2000T-TCU-C is a 20-inch industrial-grade touch panel built for demanding applications. Featuring a high-resolution 1600x1200 display, front IP65-rated protection, and a durable resistive touchscreen, it’s designed to perform reliably in harsh environments. With a robust black chassis and flexible mounting options, this unit is ideal for industrial automation, kiosks, and control systems. |
Features: |
|
| Display | Viewing Size Image | 20.1" |
| Active Display Area (mm) | 410.0x 308.0mm | |
| Pixel Pitch (mm) | 0.255 (H) x 0.255(V) | |
| Resolution | 1600 x 1200 | |
| Contrast Ratio | 800 : 1 (typ.) | |
| Color | 16.7M (8bits/colors) | |
| Brightness | 300nits | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1600 x 1200 @ 60Hz | |
| Signal Connector | VGA,DVI | |
| Power | Source | 100-240 VAC Input |
| Consumption | 60W typical, normal operation | |
| Management | VESA DPMS Compliant |
