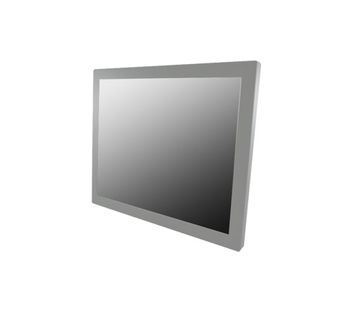

20.1" Industrial Panel Chassis Front IP65 w/ AR Glass, VGA, DVI, HDMI and 100-240VAC (Model: CCH2010CT1)
20.1" Industrial Panel Chassis Design Front IP65 / 1600x1200 / 300nits with AR Glass with VGA, DVI, HDMI and 100-240VAC
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The CCH2010CT1 is a robust 20-inch industrial panel chassis LCD monitor engineered for demanding environments. Featuring an IP65-rated front panel, this display ensures protection against dust and water, making it ideal for industrial automation, manufacturing, and factory control systems. Built with a rugged metal chassis and versatile mounting options, the CCH2010CT1 offers durability and performance in mission-critical applications. With multiple video input interfaces and touch screen capability, it delivers functionality and reliability in one compact solution. |
Features: |
|
| Display | Viewing Size Image | 20.1" |
| Active Display Area (mm) | 408x 306mm | |
| Pixel Pitch (mm) | 0.255 (H) x 0.255(V) | |
| Resolution | 1600 x 1200 | |
| Contrast Ratio | 800 : 1 (typ.) | |
| Color | 16.7M (8bits/colors) | |
| Brightness | 300 cd/㎡ | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1600 x 1200 @ 60Hz | |
| Signal Connector | VGA,DVI, HDMI | |
Power |
Source | 100-240 VAC Input |
| Consumption | 60W typical, normal operation | |
| Management | VESA DPMS Compliant |
