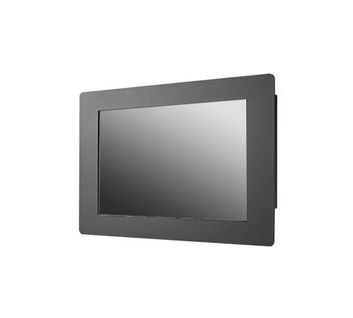

20.1" Full IP66 Panel Mount LCD Monitor, Resistive Touch w/ VGA, DVI, USB (for Touch use) (Model: EPM6-2010-TRC)

20.1" LCD Monitor 1600x200 / 300nits, All Aluminum Panel Mount (with 6mm Front Bezel) with FULL IP66 and Resistive Touch VGA, DVI, USB (for Touch use)

20.1" LCD Monitor 1600x200 / 300nits, All Aluminum Panel Mount (with 6mm Front Bezel) with FULL IP66 and Resistive Touch VGA, DVI, USB (for Touch use)

Inquiry/Quote Request
EPM6-2010-TRC
  • Overview
  • Specifications
  • Download
The 20-Inch Full IP66 Panel Mount LCD Monitor with Touch (EPM6-2010-TRC) by iTech is a highly durable and versatile display solution, ideal for industrial and demanding environments. Its IP66-rated enclosure offers complete protection against dust and water, making it suitable for both indoor and outdoor applications. The resistive touchscreen provides reliable interaction even in harsh conditions, while the rugged construction ensures long-term performance. This monitor combines functionality, durability, and cutting-edge technology, making it a perfect choice for critical operations.


Features:
  • 20.1" Industrial Panel / 1600x1200 / 300nits (LED Backlight)
  • All Aluminium for Panel Mount Design (with 6mm Front Bezel) / 2mm Rear Enclosure
  • Resistive Touch / Full IP66
  • All Black Powder Coating
  • I/O ( all connectors are waterproof connectors /6ft long ): VGA, DVI, USB ( for Touch use ) and 100-240VAC Power Cord
Display Viewing Size Image 20.1"
Active Display Area (mm) 20.1 inches( 510.54mm ) diagonal
Pixel Pitch (mm) 0.255 (H) x 0.255(V)
Resolution 1600 x 1200
Contrast Ratio 800 : 1 (typ.)
Color 16.7M colors
Brightness 300 cd/m2
Viewing Angle -89-89 (H); -89-89 (V)
Recommended Resolution 1600 x 1200 @ 60Hz
Signal Connector VGA, DVI, USB ( for Touch use )

Power Source 100-240VAC power adapter
Consumption 36.05W typical, normal operation
Management VESA DPMS Compliant
Optional Touch PCAP, IR
High Brightness YES
Auto Dimming YES
Power in DC24V, DV9V-36V
Remote Control YES
IO AV,HDMI,DP
