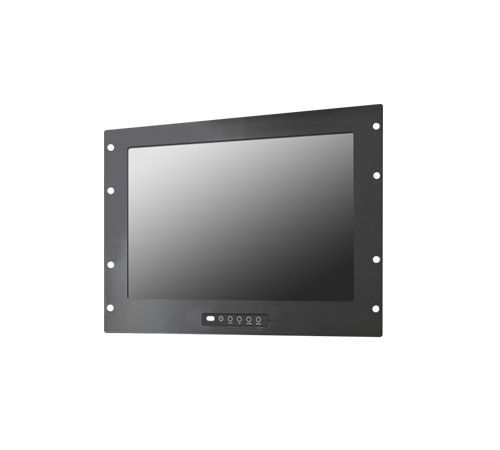

20.1" Front IP65 9U Rack Mount Industrial Panel w/ Resistive Touch, VGA, DVI, 100-240VAC (Model: CRM2010TR-SW)

9U Rack Mount 20.1" Industrial Panel Front IP65 1600x1200, 300nits, Resistive Touch with ON_OFF Switch Control / Front IP65 with VGA, DVI, USB ( for Touch use ) and 100-240VAC Power Cord

9U Rack Mount 20.1" Industrial Panel Front IP65 1600x1200, 300nits, Resistive Touch with ON_OFF Switch Control / Front IP65 with VGA, DVI, USB ( for Touch use ) and 100-240VAC Power Cord

Inquiry/Quote Request
CRM2010TR-SW
  • Overview
  • Specifications
  • Download
The 20-Inch Front IP65 9U Rack-Mount Industrial Panel with Touchscreen (Model: CRM2010TR-SW) is a robust and versatile solution for demanding industrial and military environments. Designed with a durable IP65-rated front panel, it offers superior protection against dust and water. Featuring a 20-inch high-resolution touchscreen display, this panel is perfect for applications requiring rugged reliability and precision touch input. Its 9U rack-mount design ensures seamless integration into existing setups, making it ideal for control rooms, manufacturing floors, and mission-critical operations.


Features
  • 20.1" Industrial Panel / 1600x1200 / 300nits ( LED Backlight )
  • 9U Rack Mount design ( with 3mm front bezel ) / VESA mount
  • Resistive Touch with ON_OFF Switch Control / Front IP65
  • All Black Powder Coating
  • I/O: VGA, DVI, USB ( for Touch use ) and 100-240VAC Power Cord

Display Viewing Size Image 20.1"
Active Display Area (mm) 20.1 inches( 510.54mm ) diagonal
Pixel Pitch (mm) 0.255 (H) x 0.255(V)
Resolution 1600 x 1200
Contrast Ratio 800 : 1 (typ.)
Color 16.7M
Brightness 300 cd/㎡
Viewing Angle -89~89 (H) ; -89~89 (V)
Recommended Resolution 1600 x 1200 @ 60Hz
Signal Connector VGA, DVI

Power 		Source 100-240VAC Power Cord
Consumption 36.05W typical, normal operation
Management VESA DPMS Compliant
Optional Touch Resistive
High Brightness YES
Auto Dimming YES
POWER in DC24V,DC9V~36V
Remote Control YES
IO AV,HDMI,DP
