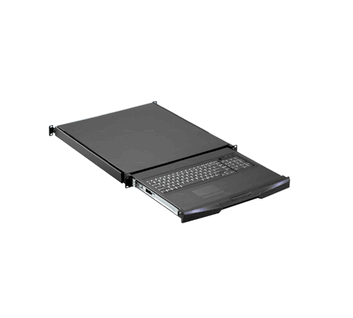

1U Rackmount Notebook KB w/ Touchpad Mouse Drawer w/ G2 Version, Depth is 600mm 23.62" Deep. (Model: NK1e-V2)

1U Rackmount Notebook Keyboard & touch-pad mouse Drawer with G2 version and Depth is 600mm 23.62" Deep. (Min. mounting depth - 22.75" Max. mounting depth - 36") Cables are attached to the back of the unit with 2 x USB coming out for KB and Mouse 6ft long cables.

1U Rackmount Notebook Keyboard & touch-pad mouse Drawer with G2 version and Depth is 600mm 23.62" Deep. (Min. mounting depth - 22.75" Max. mounting depth - 36") Cables are attached to the back of the unit with 2 x USB coming out for KB and Mouse 6ft long cables.

Overview
Specifications
Download

Features:

1U keyboard drawer
104-key keyboard with touchpad
One Man installation design
Enhanced aesthetics with molded front panel and two point lock
2-year standard warranty (upgradable up to 5 years)

Options:

MAC or SUN Micro keyboard options available

Console Port
KB / MS	USB interface
	Drawer end : attached 6ft USB cable x 2 Server end : USB type A x 2

Physical
Dimensions ( W x D x H )	Product	442 x 600 x 44 mm 17.4 x 23.6 x 1.73 inch
	Packing	580 x 845 x 115 mm 22.8 x 33.3 x 4.5 inch
Weight	Net	10.9 kg / 24 lb
Weight	Gross	13.2 kg / 29 lb

Mounting Distance
Keyboard Drawer/ Console w/ KVM drawer	560 ~ 790 mm 22 ~ 31.1 inch

Environment
Operating temp.	-20 to 65°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	10~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Compliance
EMC	FCC & CE
Safety	CE / LVD & UKCA
Environment	REACH & RoHS3 / WEEE
