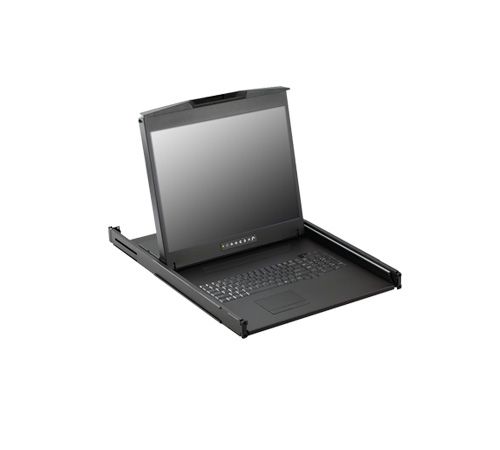

1U Rackmount 20" 104 Key Notepad Keyboard w/ Touchpad, 8-Ports 2K HDMI KVM (Model: NVP120-K8e)

1U Rackmount 20" 104 Key Notepad Keyboard w/ Touchpad with 8-Ports 2K HDMI KVM (Cable NOT included)

1U Rackmount 20" 104 Key Notepad Keyboard w/ Touchpad with 8-Ports 2K HDMI KVM (Cable NOT included)

Overview
Specifications
Download

Benifits

1U 20" LCD console drawer
1600 x 1200 native resolution / 16.7M colors
104-key keyboard with touchpad
One Man installation design
Enhanced aesthetics with molded front handle and two point lock
2-year standard warranty ( upgradable up to 5 years )

KVM Features

2K KVM with 8 HDMI USB ports in 1U
2K KVM cables support DP & HDMI video input
Local console & KVM ports support resolution 2K and 1080p.
Multi-platform for PC, server, blade server & SUN / MAC
Port switching via front button & keyboard hotkeys
Hot pluggable, no software or drivers required

LCD Panel
Panel size ( diagonal )	20.1"
Native resolution	1600 x 1200
Brightness ( cd/m² )	300
Contrast ratio ( typ. )	800 : 1
Colors	16.7 M
Viewing angle ( L/R/U/D )	89/89/89/89
Response time ( ms )	16
Dot pitch ( mm )	0.255
Display area ( mm )	408H x 306V
Surface treatment	Anti-glare, Hard-coating
Surface hardness	3H
Backlight type	CCFL
MTBF (hrs)	45,000

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (console / KVM)	Screen on	Max. 45W / Max. 78W
	Power saving mode	Max. 2W / Max. 34W
	Power button off	Max. 1W / Nil

Compliance
EMC	FCC, CE
Safety	CE / LVD & UKCA
Environment	RoHS3 & REACH

Environment
Operating temp.	0 to 55°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

2K HDMI KVM

2K KVM	IP	Remote	8-port
2K KVM	0	0	NVPW1215-8K

2K KVM Cable

		Resolution Support ** :	16:9 - max. 2560 x 1440
			16:10 - max. 1920 x 1200
N2K-6D (6 ft)	N2K-6H (6 ft)		4:3 - max. 1600 x 1200
DVI-D KVM cable 6ft 2K 60Hz	HDMI KVM cable 6ft 2K 60Hz

Local Console
Keyboard / Mouse :	2 x USB-A
Video :	1 x HDMI 1.4
Resolution :	16 : 9 - max. 2560 x 1440@60H
	16 : 10 - max. 1920 x 1200@60Hz
	4 : 3 - max. 1600 x 1200@60Hz

Management
Port switching	Front button & keyboard hotkeys
Compatibility
Hardware	HP / IBM / Dell PC, Server and Blade Server SUN / Mac
OS support	Windows / Linux / Unix / Mac OS
Environment
Operating temp.	0 to 55°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

KVM Port
Port # :	8
Connector :	HDMI 1.4 + USB-B ( Video + KB / MS )
Resolution :	16 : 9 - max. 2560 x 1440@60Hz
	16 : 10 - max. 1920 x 1200@60Hz
	4 : 3 - max. 1600 x 1200@60Hz

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 10W
Compliance
Safety	FCC & CE certified
Environment	RoHS2 & REACH compliant
