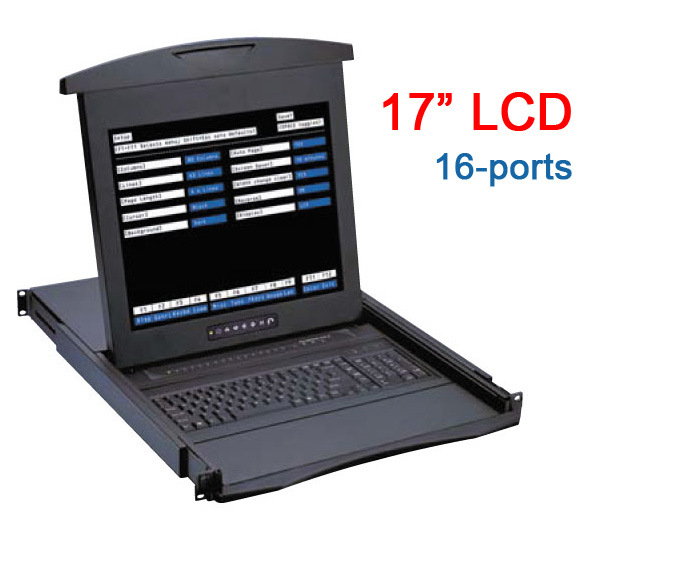

1U Rackmount 17" LCD 16-ports Terminal RS232 Keyboard shelf Drawer with Remote IP Access using SSH or telnet. Model (NXT11716)

1U Rackmount 17" LCD 16-ports Terminal RS232 Keyboard shelf Drawer with Remote IP Access using SSH or telnet. Model (NXT11716)

1U Rackmount 17" LCD 16-ports Terminal RS232 Keyboard shelf Drawer with Remote IP Access using SSH or telnet. Model (NXT11716)

Inquiry/Quote Request
NXT11716
  • Overview
  • Download
Discontinue Product Dated 2018. Please contact us at Sales@iTechlcd.com for replacement item.

LCD Drawer & Console Switch Benefits
  • Designed for SUN, and all other leading brands of headless servers
  • Install and configure RS-232 devices across the network
  • Single or "One Man" Installation slides for easy, quick installation
  • 104 key notepad keyboard with full numerical pad
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Secure Remote IP access using SSH or telnet clients

Drawer Features & Options

  • 1U rackmount drawer with a 17" SAMSUNG LCD
  • Multiple keyboard language selections with either touchpad or trackball
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Optional mounting hardware for two post telco style racks

Dimension
Model Product Dimension (WxDxH) Packing Dimension (WxDxH) Net Weight Gross Weight
NXT-117 442 x 650 x 44 mm 17.4x25.6x1.73 inch 589 x856 x168 mm 23.2 x 33.7 x 6.6 16 kg/35 lbs 22 kg/48 lbs
NXT-11716 442 x 650 x 44 mm 17.4x25.6x1.73 inch 589 x856 x168 mm 23.2 x 33.7 x 6.6 inch 16 kg/35 lbs 22 kg/48 lbs


Connect your console terminal LCD keyboard drawer


Technical Specification
Local Console
LCD display:
Brightness :
Input device :
Samsung 17" LCD, 800 x 600
300 cd/m2
104-key keyboard with Num-pad

Terminal Emulations
Emulation :

WY-60, WY-120, WY-50+, WY-325, ADDS A2, PCG Alpha-60, TV1910, TV1925, PC TERM, VT52, VT100, VT220, Console ANSI

Serial Port
Number of ports :
Connectivity:
Flow control:

1 or 16
RS-232, Rx, Tx, RTS, DTR, DSR
None, RTS / CTS, Xon / Xoff

Remote Access (only for 16 port model)
Security:

Protocol:


SSH v2, IP filtering, HTTPS /SSL,
password access
TCP, UDP, IP, ARP, ICMP, HTTP/HTTPS,
Telnet, DHCP/BOOTP, PPP, SMTP, DNS, NTP, Dynamic DNS

Compatibility
SUN Solaris, IBM RS/6000 AIX, SCO Unix, Xenix, PC-based headless server, router, terminal server, firewall & switch

Ethernet Port
lOBasetT, RM5
10/1 OOBaseT, RJ45 (only for 16 port model

Power
 Input:
Option DC :
Consumption :

100 or 240VAC, 50 to 60 I EC type cord
12V/24V/48V DC input
Max. 40 Watt

Regulatory Approval

FCC, CE

Environmental
Operating :
Storage:
Relative humidity:
Shock:
Vibration:

0 to 50'C
-lOtooO'C
90%, non-condensing
50G peak acceleration (11ms, half-sine wave)
58~100Hz / 0.98G (11 min / cycle)
