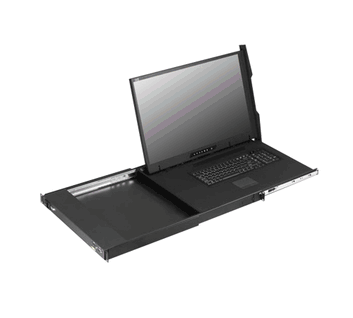

1U 23" 4K LCD Console Drawer with 8-Ports 4K HDMI USB KVM, 104-key keyboard with touchpad (Model:NVP1240-84Ke)

1U 23" 4K LCD Console Drawer with 8-Ports 4K HDMI USB KVM, 104-key keyboard with touchpad (Model:NVP1240-84Ke)

1U 23" 4K LCD Console Drawer with 8-Ports 4K HDMI USB KVM, 104-key keyboard with touchpad (Model:NVP1240-84Ke)

Main Feature

    • 1U 23" 4K LCD console drawer
    • 3840 x 2160@60Hz native resolution / 1.07B colors ( 10-bit )
    • 1920 x 1080 & 1920 x 1200 resolution support
    • 104-key keyboard with either touchpad or trackball
    • Built-in dual stereo speakers
    • One Man installation design
    • Enhanced aesthetics with new molded front panel and 2-point lock
    • 2-year standard warranty ( upgradable up to 5 years )
NVP1240-84Ke
  • Overview
  • Specifications
  • Download
  • Contact Sales

Features:

  • 1U 23" 4K LCD console drawer
  • 3840 x 2160@60Hz native resolution / 1.07B colors ( 10-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • 104-key keyboard with either touchpad or trackball
  • Built-in dual stereo speakers
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )


Options:

  • HDMI 2.0 video input
  • Front USB Hub Port for Device Access
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC power : 12V / 24V / 48V / 125V
  • MAC or SUN Micro keyboard options available
LCD Panel
Panel size ( diagonal ) 23.8"
Native resolution 3840 x 2160 @60Hz
Brightness ( cd/m˛ ) 310
Contrast ratio ( typ. ) 1000 : 1
Colors 1.07 Billion, 10-bit
Viewing angle ( L/R/U/D ) 89/89/89/89
Response time ( ms ) 25
Dot pitch ( mm ) 0.1330%5
Display area ( mm ) 527.04H x 296.46V
Surface treatment Anti-glare
Surface hardness 3H
Backlight type LED
MTBF (hrs) 30,000

Audio Option
Output Connector 3.5mm stereo jack
  Resistance / Power level 30kQΩ / 2.8V
Speaker     Dual stereo 2W x 2

Mounting Distance
Console w/ KVM drawer 670 ~ 980 mm
26.4 ~ 38.6 inch

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
(console / KVM)
Screen on Max. 43W / Max. 54W
Power saving mode Max. 2W / Max. 18W
Power button off Max. 1W / Nil

Environment
Operating temp. 0   to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

Physical
Dimensions: ( W x D x H ) Console w/ KVM 442 x 750 x 44 mm / 17.4 x 29.5 x 1.73 inch
Packing: ( W x D x H ) Console w/ KVM 595 x 910 x 140 mm / 23.4 x 35.8 x 5.5 inch
Net weight Console w/ KVM 16.1kg / 35.4 lb
Gross Weight Console w/ KVM 22 kg / 48.4 lb



KVM FEATURES
  • 4K KVM with 8 HDMI USB ports in 1U
  • 4K KVM cables support DP & HDMI video input
  • USB hub port share peripheral devices among computers
  • Local console & KVM ports support resolution 4K, 2K and 1080p.
  • Multi-platform for PC, server, blade server & SUN / MAC
  • Port switching via front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required
OPTIONS
  • DC power options: 12V / 24V / 48V / 125V


4K KVM Cable
NK6DP (6 ft) NK6H (6 ft)
DVI-D KVM cable 6ft 4K 60Hz HDMI KVM cable 6ft 4K 60Hz


Local Console
Keyboard / Mouse : 2 x USB-A
Video : 1 x HDMI 1.4
Resolution : 16 : 9 - max. 2560 x 1440@60H
16 : 10 - max. 1920 x 1200@60Hz
4 : 3  - max. 1600 x 1200@60Hz

Management
Port switching Front button & keyboard hotkeys
Compatibility
Hardware HP / IBM / Dell PC, Server and
Blade Server SUN / Mac
OS support Windows / Linux / Unix / Mac OS
Environment
Operating temp. 0 to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

KVM Port
Port # : 8
Connector : HDMI 2.0 + USB-B ( Video + KB / MS )
Resolution : 16 : 9 - max. 3840 x 2160@60Hz
16 : 10 - max. 1920 x 1200@60Hz
4 : 3 - max. 1600 x 1200@60Hz

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 10W
Compliance
Safety FCC & CE certified
Environment RoHS2 & REACH compliant
