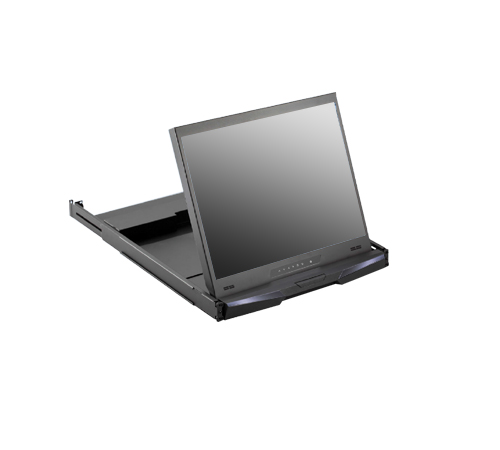

1U 20" LCD Drawer (Model: NP120)

1U 20" LCD Drawer (Model: NP120)

1U 20" LCD Drawer (Model: NP120)

NP120
  • Overview
  • Download

Drawer Features & Display Benefits:
  • 1U 20" LCD drawer with DVI-D / VGA input
  • 1600 x 1200 high resolution
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Enhanced aesthetics with molded front panel and two point lock

Options:
  • 3G/HD/SD-SDI Broadcast-grade input
  • S-Video + Composite (BNC)
  • HDMI or Audio input
  • 48V, 24V or 12VDC power

Basic I/O: VGA and DVI-D
Options: HDMI, Audio, S-Video + BNC





Diagram (mm):

Specifications:
LCD Panel
Manufacturer
LG
Diagonal size
20.1" TFT
Max. Resolution
1600 x 1200
Brightness (cd/m2)
300
Backlight
CCFL
Colors
16.7 M
Contrast Ratio (typ)
800 : 1
Viewing Angle (H/V)
178° x 178°
Active area (mm)
408 x 306
MTBF (hrs)
45,000
Signal input
VGA or DVI-D
Casing Color
Black ( RAL 9005 )
Weight
Net
13.5 kgs (30 lbs)
Gross
17.5 kgs (39 lbs)
Environmental
Operating
0 to 50°C Degree
Storage
-25 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
FCC, CE, RoHS
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Dimensions
Product
439.6 x 650 x 44 mm / 17.3 x 25.6 x 1.73 inch
Packing
595 x 650 x 140 mm / 23.4 x 33.9 x 5.5 inch
