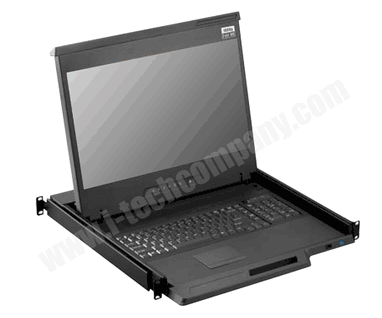

1U 19" High Bright LCD 1000 Nits Keyboard / KVM Drawer (Model: HNVP119)

1U 19" High Bright LCD 1000 Nits Keyboard / KVM Drawer (Model: HNVP119)

1U 19" High Bright LCD 1000 Nits Keyboard / KVM Drawer (Model: HNVP119)

Main Feature

    • 1000cd/m˛ for 19" LCD
    • Lower power consumption
    • High shock & vibration resistance
    • Minimum EMI emissions
    • Short depth design of 480mm and 520mm respectively
    • New enhanced aesthetics with molded front handle
    • Front USB port for device access (USB Hub KVM only)
Inquiry/Quote Request
HNVP119
  • Overview
  • Specifications
  • Ordering Information
  • Download
  • Contact Sales

Options

• S-Video + Composite ( BNC )
• HDMI or DVI-D ( either one )
• ORB-2.1 2-post rack mounting brackets
• DC power : 24V / 48V / 125V / 250V

STRUCTURE DIAGRAM

STANDARD KEYBOARD



Supporting Layouts


KEYBOARD OPTIONS (US layout only)

LCD Panel
Manufacturer AUO
Diagonal size 19" TFT
Max. resolution 1280 x 1024
Brightness (cd/m2) 1000
Backlight LED
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing Angle (H/V) 170° x 160°
Active area (mm) 376 x 301
MTBF (hrs) 30,000
Video input VGA
Speaker
( HDMI only ) Built-in Dual Stereo Speakers 2W x 2
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption (single console)
Sreen on Max. 35W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating temperature 0 to 55°C degree
Storage temperature -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 5~500Hz 1G RMS random vibration
Casing Color
Black ( RAL 9005 )
Regulatory
Safety FCC & CE certified
Environmental RoHS2 & REACH compliant
Weight ( single console )
Net 13.2 kgs / 29 lbs
Gross 18.2 kgs / 40 lbs
Dimensions ( single console )
Product 441.6 x 520 x 44 mm / 17.4 x 20.5 x 1.73 inch
Packing 590 x 808 x 140 mm / 23.2 x 31.8 x 5.5 inch

CONSOLE CABLE
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port
For keyboard option add (e) touchpad or (b) trackball at the end of the model no.
Sample: HNVP119-CIP8e

Combo Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 HNVP119-CIP8 HNVP119-CIP16 HNVP119-CIP32
1 1 0 HNVP119-CCE8 HNVP119-CCE16 HNVP119-CCE32
1 0 0 HNVP119-C8 HNVP119-C16 HNVP119-C32
Cat6 KVM Dongle : DG-100S ( VGA-USB ) / DG-100 ( VGA-PS/2 ) / DG-100SD ( DVI-USB )


Combo DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 HNVP119-IP8 HNVP119-IP16 -
1 1 0 HNVP119-8 HNVP119-16 -
1 0 0 HNVP119-S801 HNVP119-S1601 -
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )


DVI-D KVM Local Remote IP 12-port - -
1 0 0 HNVP119-12D - -


USB-Hub DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 HNVP119-IPB8 HNVP119-IPB16 -
1 1 0 HNVP119-B82 HNVP119-B162 -
1 0 0 HNVP119-B8 HNVP119-B16 -
