1U 17.3" LED Single Slide LCD 104 KB Touchpad, w/ 12-Ports DVI KVM Switch, 100-240V AC (Model: AVPW117D12e)

1U 17.3" LED 1920 x 1080 Single Slide LCD 104 Keyboard touchpad, 300nits. With 12 port DVI KVM switch, 100-240V AC 50/60Hz via IEC Type power cord

1U 17.3" LED 1920 x 1080 Single Slide LCD 104 Keyboard touchpad, 300nits. With 12 port DVI KVM switch, 100-240V AC 50/60Hz via IEC Type power cord

Inquiry/Quote Request
AVPW117D12e
  • Overview
  • Specifications
  • Download

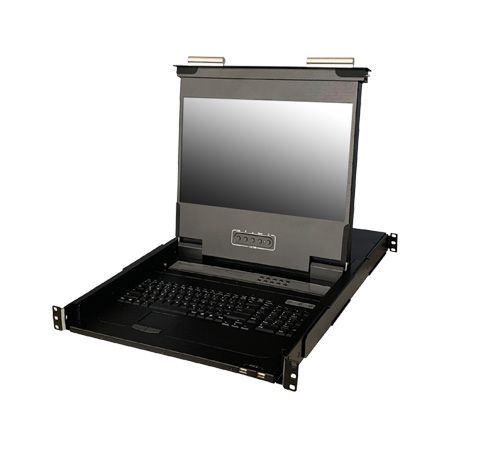

The iTech AVPW117D12e is a high-performance 1U rack-mount console drawer designed for demanding data-centre, server-room, and industrial IT applications. Featuring a 17-inch full-HD DVI-D monitor, integrated 104-key keyboard and touchpad, and a built-in 12-port DVI-D KVM switch, this unit streamlines server control while saving valuable rack space. Ideal for environments where reliability, accessibility and compact design matter most.


Features:
  • 12 port DVI-D LCD KVM Switch
  • Additional two USB console port to add local KB/Mouse (front)
  • Port selection via push buttons or hotkey
  • Durable 104-key keyboard and touch pad
  • Quick and simple installation
  • Self-locking and auto release rails for ultra-convenience
  • 12 port DVI-D LCD KVM Switch
  • Additional two USB console port to add local KB/Mouse (front)
  • Port selection via push buttons or hotkey
  • Durable 104-key keyboard and touch pad
  • Quick and simple installation
  • Self-locking and auto release rails for ultra-convenience
Direct no. of Computers 12
Maximum no. of Computers 12
LCD Size 17.3"
Backlight LED
Resolution 1920*1080 FULL HD (support up to 1920*1200)
Max.color 262K
Luminance 300cd/m2
View Angel (H/V) 140 / 120
Contrast Ratio 650 : 1
Port Selection Push Button, Hotkey
USB Local console Yes , front USB x2 for KB/ Mouse
KB/Mouse Emulation USB
Rack Depth 500mm to 1100mm ( rack cabinet front rails to rear rails )
Power 100-240V AC 50/60Hz via IEC Type power cord
Environment Operation temp: 0 to 50°C
Storage temp: -20 to 60°C
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x600mm (WxHxD) /12.5KG
Packing Dimensions / Gross weights 715x140x780mm (WxHxD) / 18.5KG
Accessory
1.8meter IEC Type Power Cord
Option Relate Item
ADV16 1.8meter DVI-D Cable ASU-018 1.8meter USB Cable
