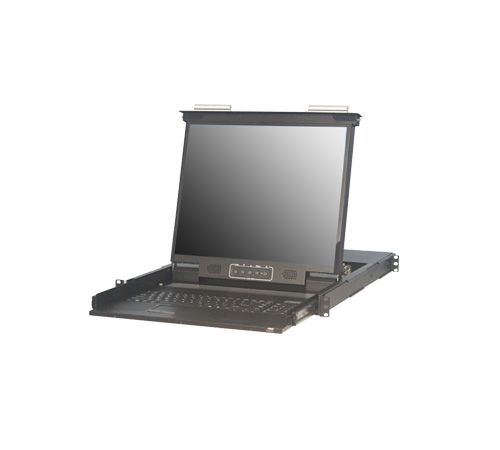

1U 17" LED Single Slide LCD 104 Keyboard Touchpad, 250nits, 72~144 VDC w/ Resistive touchscreen (Model: AVP117e-125DC-TR)
1U 17" LED 1280x1024 Single Slide LCD 104 Keyboard Touchpad, 250nits, 72~144 VDC with terminal block Resistive touchscreen (USB interface)
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The AVP117e-125DC-TR is a compact 1U rackmount console drawer featuring a durable yet user-friendly single-slide design. It integrates a 17-inch LED display with resistive touch, a 104-key keyboard including touchpad, and versatile DVI/VGA inputs with front and rear USB 2.0 ports-perfect for streamlined server management in demanding environments. Built-in 2 W speakers and a wide 72-144 VDC power range add robust flexibility for industrial or remote deployments. |
Features: |
|
| Direct no. of Computers | 1 | |
| KVM Connectors | DVI-D, VGA, USB | |
| LCD | Size | 17" |
| Backlight | LED | |
| Resolution | 1280*1024 | |
| Max. Color | 16.7M | |
| Luminance | 250cd/m2 | |
| View Angel (H/V) | 176 / 170 | |
| Contrast Ratio | 1000 : 1 | |
| USB HUB | 1x Front , 2x Rear USB 2.0 Type A for peripheral USB devices | |
| Touchscreen | YES , for option ( Driver needed ) | |
| KB/Mouse Emulation | USB 2.0 | |
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | |
| Power | 72~144V DC with terminal block | |
| Environment | Operation temp: 0 to 50°C Storage temp: -20 to 60°C Humidity: 10% - 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 14.5KG | |
| Packing Dimensions / Gross weights | 720x170x790mm (WxHxD) / 19.5KG | |
| Accessories | 1.8 meter DVI-D Cable, 1.8 meter VGA Cable , 1.8 meter USB Cable , 1.8 meter Audio Cable (each one) | |
