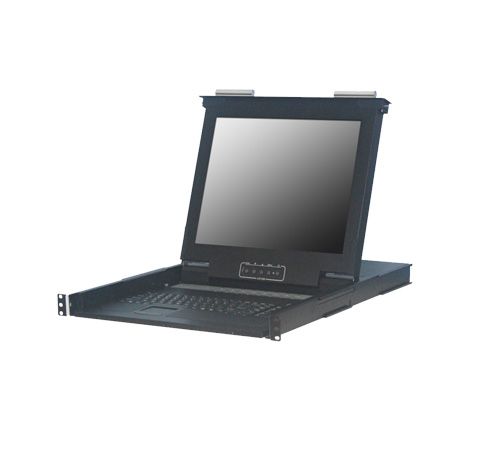

1U 17" Combo DB15 Console Drawers w/ 104 KB Touchpad w/ 16Ports Combo PS/2 & USB KVM, 125VDC (Model: AVP117S16e-125V)

1U 17" LED 1280x1024 Single Slide LCD 104 Keyboard touchpad, 250nits. with KVM RGB 16 port combo PS/2 and USB KVM switch, 125VDC Terminal Block "+" and "-". chassis depth 630m/25" Deep* Include 16 pcs of AB-6 (1.8meter 2-in-1 KVM Cable-USB&VGA) cables, Includes VGA + USB KVM cables 6ft long total of 16 pcs.

1U 17" LED 1280x1024 Single Slide LCD 104 Keyboard touchpad, 250nits. with KVM RGB 16 port combo PS/2 and USB KVM switch, 125VDC Terminal Block "+" and "-". chassis depth 630m/25" Deep* Include 16 pcs of AB-6 (1.8meter 2-in-1 KVM Cable-USB&VGA) cables, Includes VGA + USB KVM cables 6ft long total of 16 pcs.

Inquiry/Quote Request
AVP117S16e-125V
  • Overview
  • Specifications
  • Download
Discover the AVP117S16E-125V 1U 17-inch Combo DB15 LCD Console Drawer - a sleek, rack-mountable solution that integrates a 17" LCD display, keyboard, and touchpad into a single compact unit. Designed for data centers, server rooms, and IT cabinets, this console drawer helps you save space while providing full access to your servers via a DB15 interface. Its rugged build and efficient design streamline rack management and make on-site maintenance faster and easier.


Features:
  • Support combo interface, VGA-USB & VGA-PS/2.
  • Durable 104-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra-convenience.
  • Port selection via push buttons or On-Screen-Display (OSD).
  • Dedicated daisy chain port to expand up to 240 servers.
  • Access Control List (ACL) security function for up to 8 independent user accounts.
Direct no. of Computers 16
KVM Connectors 240(Daisy chain)
LCD Size 17"
Backlight LED
Resolution 1280*1024
Max.color 16.7M
Luminance 250cd/m2
View Angel (H/V) 176 / 170
Contrast Ratio 1000 : 1
Port Selection Push Button, OSD or Hotkey
KB/Mouse Emulation USB & PS2
Rack Depth 500mm to 1100mm ( rack cabinet front rails to rear rails )
Power 72~144VDC with Terminal Block "+" and "-"
Environment Operation temp: 0 to 50°C
Storage temp: -20 to 60°C
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x630mm (WxHxD) / 13.5KG
Packing Dimensions / Gross weights 715x143x780mm (WxHxD) / 18.0KG
Accessory
Include 16 pcs of AB-6 (1.8meter 2-in-1 KVM Cable-USB&VGA) cables
Includes VGA + USB KVM cables 6ft long total of 16 pcs.
