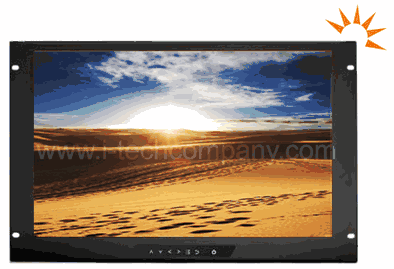

19" Widescreen High Bright LCD 800 Nits Display (Model: HNPW719)

19" Widescreen High Bright LCD 800 Nits Display (Model: HNPW719)

19" Widescreen High Bright LCD 800 Nits Display (Model: HNPW719)

HNPW719
  • Overview
  • Download

LCD Drawer Benefits:
  • 7U rackmount 19" widescreen LCD with high brightness 1000 cd/m²
  • Green LED-backlit panel technology
  • Ideal for CCTV security & industrial control

Display Features & Options:
  • 3G / HD / SD-SDI Broadcast-grade input
  • MCS Multi-display control solution
  • HW19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite (BNC) or Audio input
  • HDMI or DVI-D (either one for AV2.2 upgrade)
  • 48V or 24VDC power
  • MIL-type or lockable connector

Basic I/O: DVI-D + VGA
AV2.2D upgrade: DVI-D + VGA + BNC + S-Video + audio
AV2.2H upgrade: HDMI + VGA + BNC + S-Video + audio
AV3.0 upgrade: HDMI + DVI-D + VGA + BNC + S-Video + audio
Options: USB for touchscreen & DC power
                SDI (AV3.0 upgrade required)




Diagram (mm):

Specifications:
LCD Panel
Diagonal size
19" widescreen TFT
Max. Resolution
1440 x 900
Brightness (cd/m2)
1000
Backlight
LED
Colors
16.7M
Contrast Ratio (typ)
1000 : 1
Viewing Angle (H/V)
160° x 160°
Active area (mm)
408 x 255
MTBF (hrs)
50,000
Signal input
VGA or DVI-D
Weight
Net
9 kgs ( 20 lbs )
Gross
12 kgs ( 26 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Casing Color
Black front panel ( RAL 9005 )
Dark grey rear case ( RAL 7037 )
Regulatory
FCC, CE, RoHS
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 84 Watt, Standby 5 Watt
Dimensions
Product
480 x 58 x 310 mm / 19.8 x 2.5 x 13.9 inch
Packing
529 x 124 x 451 mm / 20.8 x 4.9 x 17.8 inch
