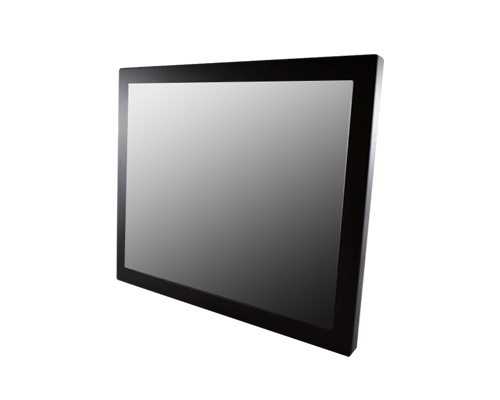

19" LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1280 x 1024, 250 nits VGA + DVI Input Side OSD with 5 Wire Resistive Touch Screen and USB Controller (Model: CCH1900IP-TR)

19" LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1280 x 1024, 250 nits VGA + DVI Input Side OSD with 5 Wire Resistive Touch Screen and USB Controller (Model: CCH1900IP-TR)

19" LCD Monitor Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O, 1280 x 1024, 250 nits VGA + DVI Input Side OSD with 5 Wire Resistive Touch Screen and USB Controller (Model: CCH1900IP-TR)

Main Feature

    • High Contrast color TFT LCD Display support resolution up to Full HD
    • Power management system conforms to VESA DPMS
    • Universal Power adapter.
    • Support DDC1 & DDC2B for Plug & Play compatibility.
    • Advanced OSD control for picture quality adjustment.
CCH1900IP-TR
  • Overview
  • Specifications
  • Download
  • Contact Sales

Rugged IP65/NEMA4X Industrial touch screen monitor, iTech is the perfect solution for Dusty and Wet industrial environments. Heavy duty Metal housing with powder coating and affordable.

  • High Contrast color TFT LCD Monitor support resolution up to XGA ( 1280 x 1024 )
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting application.
  • Heavy duty Monitor with steel frame.
  • Front IP64/NEMA4X Optional with PCAP or 5 Wire Resistive Touch Screen Options
  • IP65 Solid Back housing except I/O and VESA Mounting
  • Custom design by request.






Display
Viewing Size Image 19"
Active Display Area (mm) 376.32(H) x 301.06 (V)
Pixel Pitch (mm) 0.294 (H) x 0.294(V)
Resolution 1280 x 1024
Contrast Ratio 1000 : 1 (typ.)
Color 16.7M
Brightness 250nits
Viewing Angle -85~85 (H) ; -80~80(V)
Recommended Resolution 1280x 1024 @  60Hz, 75Hz
Signal Connector VGA, DVI



Power
Source 12V DC in, with External AC-DC Adapter(100-40V)
Consumption 11.15W typical, normal operation
Management VESA DPMS Compliant
Touch Resistive, PCAP, IR


Optional

High Brightness 1000,1500
Auto Dimming YES
POWER in DC24V,DC 9V~36V
Remote Control YES

IO
Video: VGA + DVI
Power: 12 VDC External power supply 100-240 AC 50-60Hz included
Touchscreen: USB
