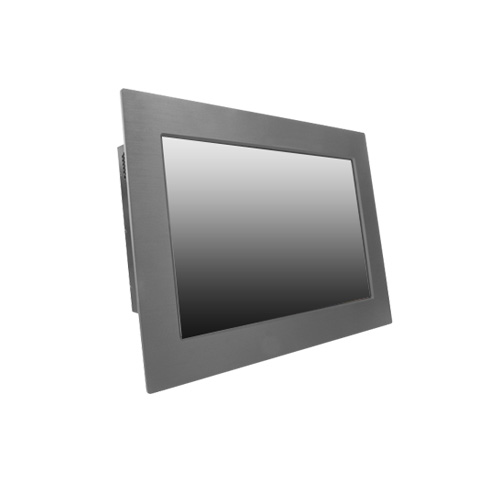

19" 1280x1024 Resistive Touch / Front IP65 Panel Mount w/ JIMB-1900-2L/J1900, RAM 8GB, SSD 256GB (Model: CPM1900-J-TR-AE01)
19" 1280x1024 Resistive Touch / Front IP65 Panel Mount (with 3mm front bezel) with JIMB-1900-2L / J1900 / RAM 8GB / SSD 256GB, 256GB, I/O : VGA, USB x4, LAN x2, RS232 x3
CPM1900-J-TR-AE01
- Overview
- Specifications
- Download
| Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
| Aspect Ratio / Size |
4 : 3 / 19" viewable diagonal area |
| Active Area / Pixel Pitch |
376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm |
| Native Resolution / Colors |
1280(H) x 1024(V) / 16.7 M |
| Brightness / Contrast |
250 cd/m2 (typ) / 800 : 1 |
| Response Time |
< 5 ms |
| Viewing Angle (typical) |
H. 170° (- 85° ~ + 85°) , V. 160° (- 88° ~ + 88°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
| Power |
Power Input |
9-36VDC with Terminal Block and 12VDC / 80W Power Adapter for testing |
| Power Consumption |
60~70 Watts |
| Operating Condition |
Temperature / Humidity |
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| Dimensions |
Physical |
Please refer to Drawing |
| Carton |
W x H x D = TBD |
|
| |
JIMB-1900-2L MB Specifications |
- Intel Celeron J1900 (2.0 GHz) quad-core processor
- Support DirectX 11 3D Graphics Acceleration
- Support DDR3L 1333
- Integrated HD Audio CODEC
- Support 2*PCI Express Gigabit LAN
- Support Power Onboard(12V)
- Onboard 1* MiniPCI-E connector
- Onboard 1* M.2 connector(2242/2260)
- 2 Phase CPU Power Support
- Support 1* USB3.0, 9* USB2.0
- Support 12* COM(COM1/2 Support RS232/422/485)
- Support Amplifier function(3W)
- Support Thunder Protection Function
- Thin mini ITX Form Factor(170mm X170mm)
|
| |
| CPU-Chipset |
INTEL® Celeron™ J1900 (2.0 GHz) quad-core processor |
|
I.O Chipset |
2 Phase CPU Power Support |
| FINTEK F81866AD-I |
| Memory |
1*SO-DIMM slot |
| Support DDR3L 1333 |
| Max. capacity of system memory up to 8GB |
| Expansion Slots |
1* Mini PCI-E connector |
| Storage |
1* Serial ATA2 3Gb/s connector |
| 1* M.2 Connector(2242/2260) |
| Audio |
ALC662 Audio CODEC |
| Ethernet LAN |
HD Audio CODEC
REALTEK® RTL8111G Chip |
| LVDS |
2* PCI Express Gigabit LAN |
| Onboard 24-bit Dual channel(Co-Lay EDP) |
| USB |
1* USB3.0 Port |
| 9* USB 2.0 (3 distribute in back panel, 6 distribute in mid-board) |
| Special Features |
Support CPU Smart Fan |
| Support Watch dog Technology |
| Support GPIO Technology |
| Support VGA header |
| Support HDIM header |
| Support Power On board |
| Support Amplifier function(3W) |
| Support 2*RS422/RS485/RS232 COM ports |
| COM 1/COM2 Support 5V/12V TTL |
| Thunder Protection Function |
| All Solid Capacitor design |
| All Power Pack MOSFET design |
| Back Panel I / O |
2* USB3.0 port
2* USB 2.0 ports
2* RJ-45 ports
1* Line-out connector
1* MIC
1* VGA port (Max. Resolution: 1920*1200@60Hz)
1* 12V DC in |
|
| |
| Internal I / O |
3* USB 2.0 headers for 6 USB 2.0 ports |
| 1 * CPU / Chassis Fan connectors |
| 12* COM headers(COM1/COM2 For RS422/RS485/RS232 and TTL ) |
| 1* Parallel header |
| 1* PS2/KB header |
| 1* 4-pin ATX 12V Power connector |
| 1* 4-pin SATA Power connector |
| 1* 12-pin VGA header (Max. Resolution: 1920*1200@60Hz) |
| 1* 20-pin HDMI header (Max. Resolution: 1920*1200@60Hz) |
| 1* 24-bit Dual Channel LVDS header (Max. Resolution: 1920*1200@60Hz) |
| 1* GPIO header |
| 1* Mini PCI-e connector |
| 1* M.2 Connector(2242/2260) |
| 1* SATA Connector |
| 1* Speaker header(Amplifier function 3W) |
| 1* Front panel header |
| 1* SIM Card socket |
| BIOS |
AMI 64MB SPI ROM |
| Temperature |
Operating: 0°C ~ 70°C
Storage: -20°C ~ 85°C |
| Form Factor |
Thin mini ITX Form Factor(170mm X 170mm) |
| Accessory |
SATA Cable
SATA Power cord
COM Cable
I/O Shield |
| OS Support |
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64 Bit)
Widows Server2012R2. Windows Server 2016, Windows Server 2019
Linux: Cent OS, Debian, Fedora, OpenSUSE, Ubuntu, pfSence, FreeNAS, RedHat |
|
