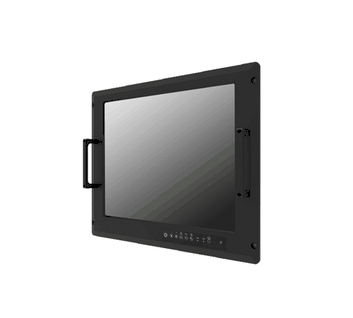

19" Military Grade Console Display MIL­STD 461E/F, MIL­STD 810F/G, Intel Core i5 w/ P-CAP Touch (Model: WMRM1900-i5-PCAP-V1)

19" 1280x1024, 350nits Military Grade Rugged Console Display Compliant with military standard Compliant MIL­STD 461E/F and MIL­STD 810F/G with P-Cap Touch Projective Touch, Intel Core i5-8265U 1.6GHz Processor

19" 1280x1024, 350nits Military Grade Rugged Console Display Compliant with military standard Compliant MIL­STD 461E/F and MIL­STD 810F/G with P-Cap Touch Projective Touch, Intel Core i5-8265U 1.6GHz Processor

Inquiry/Quote Request
WMRM1900-i5-PCAP-V1
  • Overview
  • Specifications
  • Download

Features:
  • Anti­Corrosion Housing / Fanless
  • Compliant with MIL­STD­810G/F , MIL­STD­461E/F
  • Flush Rack / Rack Mount Mechanical Design (8U)
  • Convenient On­Screen Display Controls
  • AC 110~240 V Power input default
  • Isolation DC 9~36 V Power input (Optional)
  • Built­in Light Sensor for auto brightness control
  • CPU: Intel Core i5-8265U 1.6GHz Processor
  • RAM: 8GB
  • SSD: 256GB
  • OS: Windows 11 Pro
  • With P-CAP touch
DISPLAY
Resolution 1280x1024 Size 19 inches
Contrast Ratio 1000:1 Panel Brightness 350 nits
Display Color 16.7M Colors View Angles 85,85,80,80
Active Area 376.32x301.06 mm Touch / Glass Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional)
SYSTEM SPECIFICATIONS
Processor Intel Core  i5  8265U
(6M Cache, 1.6GHz up to 3.9 GHz) 		Memory 1x SO­DIMM, DDR4 2400 MHz, 8GB
16GB (Optional)
32GB (Optional)
Storage 1 x M.2 2242 B­key SSD 256GB  up to 512GB (Optional) Ethernet controller Intel Ethernet Controller I210­AT +
Intel Ethernet Connection I219­LM
Operating System Windows 11 Pro
ENVIRONMENT
Operating Humidity 10% to 95% RH Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
COMPLIANCE
MIL-STD 461E/F RE101 /RE102
CE101 /CE102
with EMI Glass / Touch(Optional)
RS101 /RS103
CS101 /CS 106/CS 109/CS114/CS115/CS116		 MIL-STD 810F/G Vibration Method 514.5
Humidity Method 507.4
Transit Drop Method516.5
CERTIFICATION
Certification CE, FCC
IO PORTS
USB Port 2 x USB 3.2 Gen 1 Serial Port 1 x RS232/422/485 (Default RS232)
Video 1 x HDMI (Optional) LAN 2 x RJ­45
MECHANICAL
Dimension 482.6 x 399.3 x 79.6 mm Mounting Rack Mount / VESA Mount
Enclosure Metal Housing with Aluminum Bezel Cooling  System Fanless Design
POWER
Power Rating AC 100-240V, Universal, ±10%
DC 9-36V, ±10% (Optional)

ACCESSORY
Accessory 1 x Manual(Hardcopy)
1 x Driver CD
1 x Power Cord
CONTROL
Button 8 Key OSD Control Pad:
Power, Brightness DOWN, Brightness UP,
Night, Day, Auto / Manual, Reset, Lock
