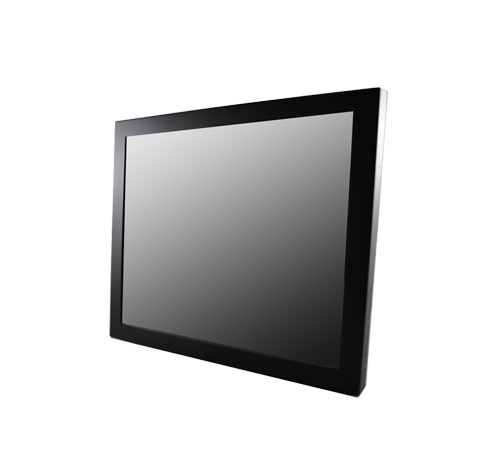

19" LCD Monitor, 1280x1024, 300 nits VGA + DVI Input Rear OSD, VESA Mounting (Model: CCH1900)
19" LCD Monitor, 1280x1024, 300 nits VGA + DVI Input Rear OSD, VESA Mounting (Model: CCH1900)
Main Feature
- High Contrast color TFT LCD Monitor support resolution up to XGA ( 1280 x 1024 )
- Power management system conforms to VESA DPMS and EPA Energy Star standards.
- Full consideration for touch screen installation and application.
- Universal Power adapter.
- Support DDC1 & DDC2B for Plug & Play compatibility.
- Advanced OSD control for picture quality adjustment.
- Detachable stand for wall-mounting application.
- Heavy duty Monitor with steel frame.
- Custom design by request.
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Display | Viewing Size Image | 19" |
| Active Display Area (mm) | 376.32(H) x 301.06 (V) | |
| Pixel Pitch (mm) | 0.294 (H) x 0.294(V) | |
| Resolution | 1280 x 1024 | |
| Contrast Ratio | 2000:1 (typ.) | |
| Color | 16.7M (8bits/colors) | |
| Brightness | 300 nits | |
| Viewing Angle | -89~89 (H) ; -89~89(V) | |
| Recommended Resolution | 1280x 1024 @ 60Hz, 75Hz | |
| Signal Connector | VGA,DVI | |
| Power | Source | 12V DC in, with External AC-DC Adapter(100-240V) |
| Consumption | 51W typical, normal operation | |
| Management | VESA DPMS Compliant | |
| Optional | Touch | Resistive, PCAP,IR |
| High Brightness | YES | |
| Auto Dimming | DC24V,DC 9V~36V | |
| Remote Control | YES | |
| IO | AV,HDMI,DP |
| Sales Inquiry | ||
 |
Sales Phone: | 888-483-2418/Press 2 510-226-9226/Press 2 |
 |
Email: | sales@itechlcd.com |
