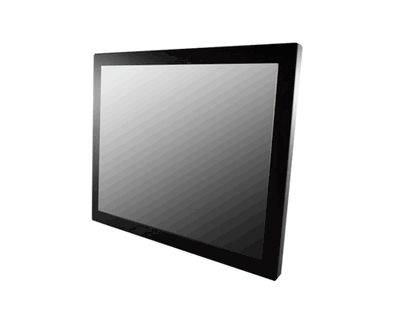

19" Chassis Heavy Duty Metal Housing LCD monitor IP65/NEMA 4, 250nits, VGA+HDMI+DVI w/ Touch (Model: CCH1900IP-TR)

Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O. Industrial Chassis/Wall Mount Heavy Duty Metal Housing , 19" LCD monitor, 1280 x 1024, 250 nits VGA + HDMI+DVI Input,Side OSD,with 5 Wire Resistive Touch Screen and USB Controller (***USB B Type Female Connectors***) +12 VDC External power supply 100-240 VAC 50-60Hz included

Front Water and dust Proof IP65/NEMA 4 with IP65 Solid Back housing except I/O. Industrial Chassis/Wall Mount Heavy Duty Metal Housing , 19" LCD monitor, 1280 x 1024, 250 nits VGA + HDMI+DVI Input,Side OSD,with 5 Wire Resistive Touch Screen and USB Controller (***USB B Type Female Connectors***) +12 VDC External power supply 100-240 VAC 50-60Hz included

Inquiry/Quote Request
CCH1900IP-TR-B
  • Overview
  • Specifications
  • Download

Features:
  • High Contrast color TFT LCD Monitor support resolution up to XGA ( 1280 x 1024 )
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting application.
  • Heavy duty Monitor with steel frame.
  • IP65 Solid Back housing except I/O and VESA Mounting
  • Custom design by request.
Display Viewing Size Image 19"
Active Display Area (mm) 377.5(H) x 302 (V)
Pixel Pitch (mm) 0.294 (H) x 0.294(V)
Resolution 1280 x 1024
Contrast Ratio 1000 : 1 (typ.)
Color 16.7M
Brightness 250nits
Viewing Angle -85~85 (H) ; -80~80(V)
Recommended Resolution 1280x 1024 @  60Hz, 75Hz
Signal Connector VGA+HDMI+DVI

Power Source  12 VDC External power supply 100-240 VAC 50-60Hz included
Consumption 11.15W typical, normal operation
Management VESA DPMS Compliant
Touch 5 Wire Resistive Touch Screen and USB Controller (***USB B Type Female Connectors***)
Optional High Brightness 1000,1500
Auto Dimming YES
POWER in DC24V,DC 9V~36V
Remote Control YES
IO Video: VGA + DVI
Power: 12 VDC External power supply 100-240 VAC 50-60Hz included
Touchscreen: USB
