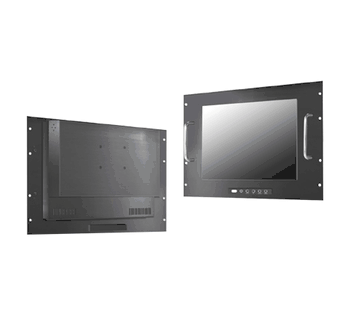

9U 19" Rackmount LCD Monitor (3MM Metal Front Bezel) 450nits, VGA+DVI, Front OSD w/ Capacitive Touch (Model: ERM1900-TC-A01)

19" Rackmount (3MM Metal Front Bezel) LCD monitor, 1280 x 1024, 450 nits  VGA +  DVI  Input, Front OSD and Handle, VESA Mounting & Built in Power Supply with Capacitive Touch and USB  AND SERIAL BOTH Controller

19" Rackmount (3MM Metal Front Bezel) LCD monitor, 1280 x 1024, 450 nits VGA + DVI Input, Front OSD and Handle, VESA Mounting & Built in Power Supply with Capacitive Touch and USB AND SERIAL BOTH Controller

ERM1900-TC-A01
  • Overview
  • Specifications
  • Download

Featues:

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Build-in SCT touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • VGA, DVI connector with optional AV,SV,AV-Looping
  • Auto Power On: Monitor is always "ON" when connect to power.
  • Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.
  • Complete custom design/solution for OEM customers

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low re lection coating
Aspect Ratio / Size 4 : 3/19" viewable diagonal area
Active Area / Pixel Pitch 376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm
Native Resolution / Colors 1280(H) x1024(V)/16.7 M
Brightness / Contrast 450 cd/m2 (typ) / 800 : 1
Response Time < 5 ms
Viewing Angle (typical) H. 170 (- 85 ~ + 85) , V 160(- 80 ~ + 80)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv: 50 -75Hz
Audio System Optional
Input Terminals VGA + DVI USB AND SERIAL BOTH TOUCH Controller
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal /Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 32.5 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0C ~ 50C (32F ~ 122F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20C ~ 60C (- 4F ~ 140F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton WxHxD=TBD
Weight N.W./G.W. 6 Kgs/7 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
