8U 19" Military Grade Front IP65 Rackmount LCD w/ VGA, HDMI, BNC Inputs, 110/240VAC MIL Lock Connector (Model: AMil-NP819)

8U 19" Military Grade Front IP65 Rackmount LCD with VGA, HDMI, 2x BNC Inputs + Loop Output, 110/240VAC via 3-Pin MIL Lock Connector

8U 19" Military Grade Front IP65 Rackmount LCD with VGA, HDMI, 2x BNC Inputs + Loop Output, 110/240VAC via 3-Pin MIL Lock Connector

Inquiry/Quote Request
AMil-NP819
  • Overview
  • Specifications
  • Download

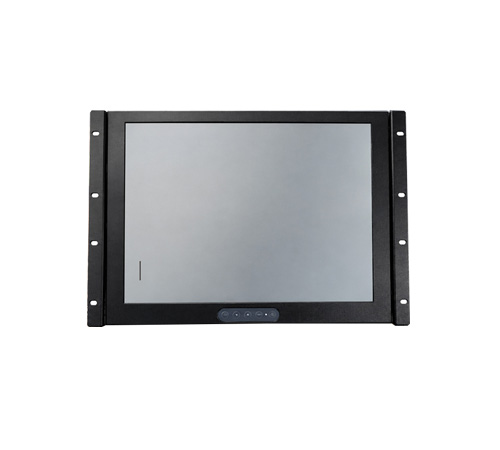

The AMIL-NP819 19" Military-Grade Front IP65 Rackmount LCD Monitor is designed for demanding military, defense, and industrial applications requiring reliable display performance and protection against harsh environmental conditions. Featuring a 19-inch LCD panel with 1280 x 1024 native resolution, this rackmount monitor delivers clear, detailed images for monitoring, control, and mission-critical applications.

Its front IP65 protection helps prevent dust and water ingress through the front panel, making it suitable for installations where environmental protection is essential. The rugged 8U rackmount design supports integration into equipment racks, control consoles, and specialized system enclosures.

Equipped with VGA and HDMI video inputs, the AMIL-NP819 offers flexible connectivity for a range of computing and video systems. Optional configurations, including touchscreen technology, additional video interfaces, and alternative power inputs, allow the monitor to be adapted to specific system requirements.


Features:
  • 19" Military-Grade LCD Monitor - Front Rack-Mount, 1280 x 1024 Resolution, 450 nits LED Backlight
  • Front Protection - IP65
  • Video I/O - VGA, HDMI, 2 x BNC Inputs + Loop Output
  • Power - Built-In Power Supply, 110/240VAC via 3-Pin MIL Lock Connector
  • Military Compliance - Designed to Meet MIL-STD-810G, Anti-Vibration & Shock Resistance
LCD CHARACTERISTICS
Screen Size 19
Backlight Type LED
Resolution 1280x1024
Contrast Ratio 1000:1
Brightness ( cd/m2 ) 450
View Angles ( H/V ) 160/140
Pixel Size ( HxV ) mm 0.294x0.294
Max. Color 16.7M

INPUT SIGNALS
VGA D-SUB 15Pin Connector (Female)
HDMI HDMI Connector (Female)
BNC 2 x BNC in and loop out (BNC Connector)
Audio 3.5" jack
Power Input MIL lock connector, 100-240V AC Input

POWER SPECIFICATIONS
AC Power Input MIL lock connector, 100-240V AC Input

USER CONTROL INTERFACE
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons

MECHANICAL AND ENVIRONMENT
Height 8U
IP Front bezel NEMA4 / IP65 compliant
Mounting Rack Mount and VESA Mount
Construction Aluminum Housing
Operating Temperature -20 ~ 70 deg. C Method 501.5 and 502.5
Storage Temperature -30 ~ 80 deg. C Method 501.5 and 502.5
Operating Humidity 5% - 95%, non -condensing Method 507.5
Anti-Vibration 5 - 500 Hz / 1 Grms PTP Method 514.6
Anti-Shock 15G / Peak ( 11 ms ) Method 516.6
Physical Dimension (WxHxD) 480 x 354.8 (8U) x 62 (mm)
Packing Dimension (WxHxD) 620 x 480 x 210 (mm)
Net Weight / Gross Weight 5 / 8 (KGs)
Certification and Approvals CE / FCC / RoHs
