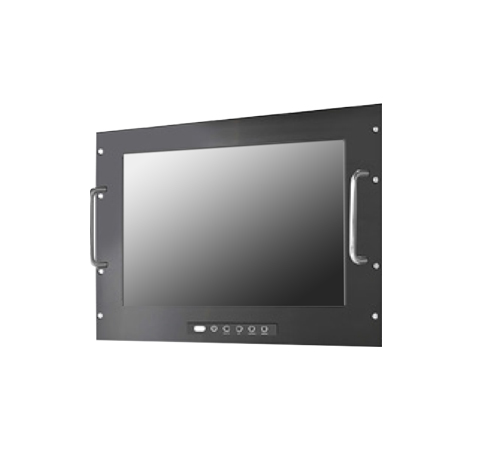

19" FRONT IP65 9U Rack Mount Panel PC w/ Front OSD JNC8H-H310 / i3-8100T / RAM 4GB / SSD 128GB (Model: CRM1900-i3-TRM)
FRONT IP65 9U Rack Mount, 19" LCD Monitor, 1280x1024 250nits w/ Front OSD with Handles JNC8H-H310 / i3-8100T (9M Cache, up to 3.10GHz, 8th Generation Intel Core i3 Processor ) / RAM 4GB / SSD 128GB
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The CRM1900-i3-TRM is a 19-inch industrial rack mount panel PC designed for mission-critical applications in industrial automation, control rooms, manufacturing, transportation, and military environments. Housed in a rugged 9U rack mount chassis with a Front IP65-rated aluminum bezel, it features a Full HD 1920x1080 display, Intel Core i3 processor, and a 10-point projected capacitive (PCAP) touchscreen for responsive operation. Engineered for reliability and continuous operation, it provides a powerful computing platform with flexible connectivity for industrial control, monitoring, and HMI applications. |
Features: |
|
| Display | Viewing Size Image | 19" |
| Active Display Area (mm) | 378.4(H) x 303.2 (V) | |
| Pixel Pitch (mm) | 0 .294 (H) x 0.294(V) | |
| Resolution | 1280x1024 | |
| Contrast Ratio | 1000 : 1 (typ.) | |
| Color | 16.7M (8bits/colors) | |
| Brightness | 250 cd/㎡ | |
| Viewing Angle | -85~88(H) ; -80~80 (V) | |
| Recommended Resolution | 1280x1024 @ 60Hz | |
| Signal Connector | VGA x1, HDMI x1, LAN x2, USB x4, RS232 x2 | |
| Power | Source | 100-240VAC power input |
| Consumption | 11.15W typical, normal operation | |
| Management | VESA DPMS Compliant |
