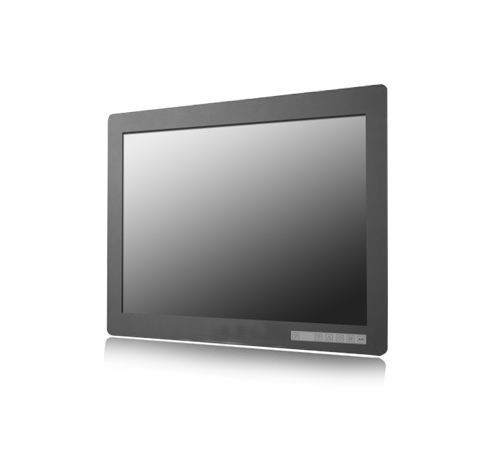

19" 1000nits 6mm Aluminum Front Bezel Panel Mount LCD Monitor w/ VGA, DVI, HDMI, Front OSD (Model: YPM1900HB-H)
6mm Aluminum front bezel / Front OSD with hot key control brightness 19" TFT / 1280x1024 / 1000nits-LED / Panel Mount / VESA Mount / VGA+DVI+HDMI signal input / AR Coating Glass / DC 9-36V Power Input / ***NON TOUCH*** Integrated Add heater for Operating Temp.: -40°C ~ +70°C
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The (YPM1900HB) is engineered for industrial and embedded display use, combining durability and visual clarity in a sleek, flush-fitting design. With its robust 6 mm aluminum bezel, this monitor ensures protection against impacts and mechanical stress. Its panel-mount form factor makes it ideal for control panels, machinery interfaces, kiosks, or other environments where a reliable display is essential. The monitor delivers crisp visuals via SXGA resolution and integrates seamlessly into industrial systems, giving you a long-lasting, high-quality display solution. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 19.0-inch TFT LCD |
| Screen Diagonal | 19.0-inch |
| Active Display Area (mm) | 376.32 (H) x 301.06 (V) |
| Pixel Pitch (mm) | 0.294 (per one triad) x 0.294 |
| Number of Pixels | 1280 x 3(RGB) x 1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M colors (RGB 6-bit + Hi-FRC) |
| Brightness (cd/ni) | 1000 cd/m (Without touch screen) |
| Viewing Angle(Typ.) | 85 / 85 / 80 / 80 ( R/L/U/D) |
| Signal Connector | 15 PIN D-Sub, DVI-D, HDMI |
| Power Source | DC 9-36V Power Input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -20 ~ +80°C |
| Storage Temperature | -10 ~ +70°C |
| Plug & Play | VESA DDC 1/2B |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
