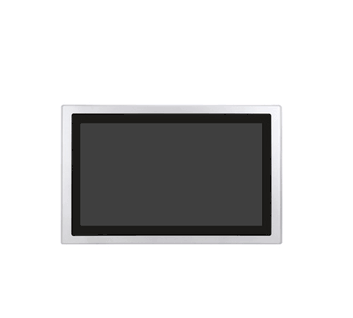

18.5" Wide Intel 4th Gen. Core i3/i5 Fanless Industrial Compact Size Panel PC (Model: APCW1850UL)

18.5" Wide Intel 4th Gen. Core i3/i5 Fanless Industrial Compact Size Panel PC (Model: APCW1850UL)

18.5" Wide Intel 4th Gen. Core i3/i5 Fanless Industrial Compact Size Panel PC (Model: APCW1850UL)

Main Feature

    • 18.5" Industrial Compact Size Panel PC
    • Intel 4th Gen. Core i3 CPU built-in/ i5(option)
    • Onboard 4GB DDR3L 1600MHz/ 8GB(option)
    • Flat Front Panel Touch Screen and Fanless Design
    • DC 9~36V Wide Range Power Input
    • IP66 Compliant Front Panel
    • Optional Projected Capacitive Touch Screen Support 7H Anti-Scratch Surface
APCW1850UL
  • Specifications
  • Download
SYSTEM
CPU Onboard Intel 4th Gen. Core i3 CPU Processors / i5(option)
System Chipset SoC
Memory Onboard 4GB DDR3L 1600MHz/ 8GB(option)
USB 2 x USB 3.0 type A
Serial / Parallel 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
Audio 1 x Audio Line Out
LAN 2 x GbE LAN RJ-45
Power


1 x 3-pin terminal block connector
1 x 2-pin power switch connector
Options 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
2 x CAN bus via TB-528CAN2
2 x USB 2.0 type A + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2P1
4 x USB 2.0 type A via TB-528U4
UPS Battery 21W/10.8V/1.95Ah(3S1P)
STORAGE SPACE
HDD 1 x 2.5" SATA3 HDD space (Easy Accessible)
EXPANSION
Expansion Slot 1 x Internal Mini-PCIe slot full size
DISPLAY
Display Type 18.5" TFT-LCD
Max. Resolution 1366 x 768
Max. Color 16.7M
Luminance (cd/m2) 300
View Angle 170(H) / 160(V)
Contrast 1000:1
Backlight Lifetime 50,000 hrs
TOUCHSCREEN
Type Resistive Touch Window
Projected Capacitive Touch
Interface USB
Light Transmission(%) Resistive Touch Window: over 80%
Projected Capacitive Touch: over 90%
POWER
Power Input DC 9~36V
Power Consumption 60W

MECHANICAL
Color RAL 9007
Construction Aluminum front bezel/ Aluminum die-casting for back cover
Mounting Panel Mount, VESA 100 x 100
Dimensions (WxHxD) 499.6mm x 314.6mm x 72mm
IP Rating IP66 Compliant Front Bezel
Net Weight 6 kg
ENVIRONMENTAL
Operating Temperature 0~50˚C
Storage Temperature -30~70˚C
Storage Humidity 10 to 90%@ 40˚C, non-condensing
Certificate CE/FCC Class A/CB/UL
OPERATING SYSTEM SUPPORT
Windows 7, WEC 7, Wndows 8.1, Wndows 10
