18.5" Chassis LCD Monitor LED-1000nits, VGA, HDMI, RS232(touch) AC-IN w/ Built-in PWR (Model: ECHW1850HB-T1)

Chassis, 18.5" LCD monitor, 1366x768, LED-1000nits, VGA, HDMI, RS232(touch) AC-IN w/Built-in PWR, Support auto light sensor, Support 5-wire resistive touch by RS232

Chassis, 18.5" LCD monitor, 1366x768, LED-1000nits, VGA, HDMI, RS232(touch) AC-IN w/Built-in PWR, Support auto light sensor, Support 5-wire resistive touch by RS232

Inquiry/Quote Request
ECHW1850HB-T1
  • Overview
  • Specifications
  • Download

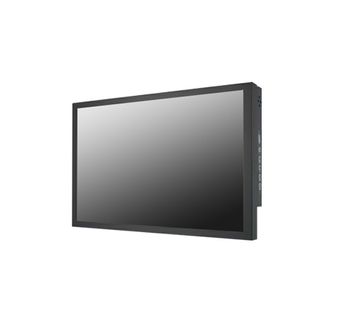

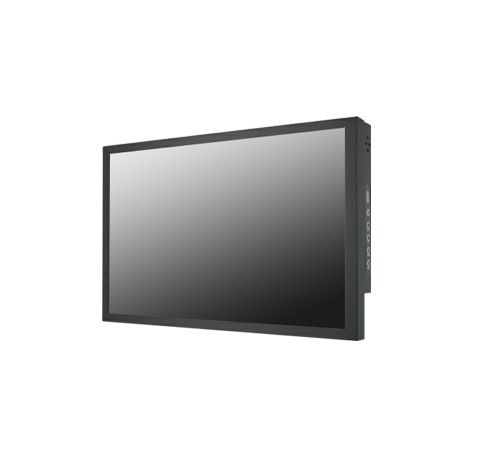

The ECHW1850HB-T1 is an 18-inch high brightness chassis LCD monitor designed for industrial and commercial applications requiring enhanced screen visibility in high ambient light environments. Built with a durable metal housing and boasting an impressive 1000 nits brightness, this monitor ensures sharp, vivid visuals even in direct sunlight. Ideal for control rooms, outdoor kiosks, transportation systems, and other demanding settings, it supports various video inputs for flexible integration and consistent performance. Trust iTech’s rugged display solutions for your mission-critical operations.


Features:
  • Utilizing modular mechanical design enables flexible product configuration and facilitates easy maintenance.
  • Incorporating a 5-wire resistive touch screen enhances interactive applications.
  • Equipped with an auto-brightness sensor, it adapts seamlessly for both daytime and nighttime use.
  • Featuring a VGA connector with optional AV, SV, and AV-Looping, it offers versatile connectivity options.
  • Tailored custom designs and solutions are available to meet the specific needs of OEM customers.
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 18.5" viewable diagonal area
Active Area 409.8(H) x 230.4(V) mm
Pixel Pitch 0.3(H) x 0.3(V) mm
Native Resolution 1366(H) x 768(V)
Colors 16.7 M
Brightness 1000
Contrast 1000 : 1
Response Time ≤ 5 ms
Viewing Angle (typical) H. 170°(- 85°~ + 85°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
VGA, HDMI, RS232 (Touch)
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
POWER CONSUMPTION
Operation / Power Saving 22 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 6 Kgs/7 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
