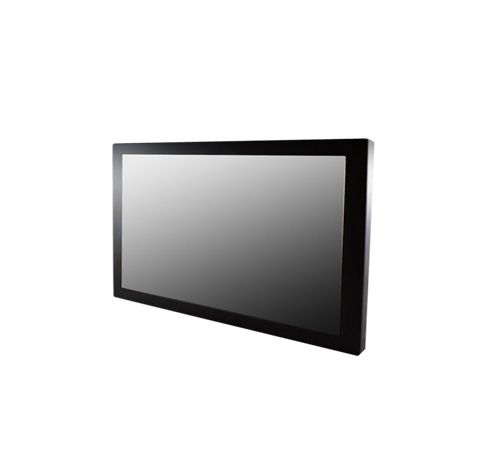

18.5" Front IP65 Fanless Panel PC Monitor Resistive Touch, JLI1B-0L / J6412, RAM 4GB / SSD 256GB (Model: CCHW1850-J-TR)

18.5" LCD Fanless Panel PC Monitor, 1920x1080, 350nits Resistive Touch / Front IP65, JLI1B-0L / J6412 (1.5M Cache, up to 2.60GHz) / RAM 4GB / SSD 256GB, Win 11 Pro64bit

18.5" LCD Fanless Panel PC Monitor, 1920x1080, 350nits Resistive Touch / Front IP65, JLI1B-0L / J6412 (1.5M Cache, up to 2.60GHz) / RAM 4GB / SSD 256GB, Win 11 Pro64bit

Inquiry/Quote Request
CCHW1850-J-TR
  • Overview
  • Specifications
  • Download
Discover the CCHW1850-J-TR, an 18-inch fanless IP65-rated front bezel panel PC designed by i-TechCompany. Featuring a touch-enabled LCD, rugged build, and seamless fanless design, this industrial-grade panel PC delivers reliable performance in challenging environments—ideal for automation, kiosks, and control systems where durability and cleanliness are paramount.


Features:
  • 18.5" Industrial Panel / 1920x1080 / 350nits
  • Operation Temp.: -20C to 70C
  • Chassis Design / VESA mount
  • Resistive Touch  / Front IP65
  • 2W Speaker x2 / Side OSD
  • Fanless Design
  • All Black Powder Coating
  • JLI1B-0L / J6412 ( 1.5M Cache, up to 2.60GHz ) / RAM 4GB / SSD 256GB
  • 12VDC with external 100-240VAC power adapter ( F Type power cord )
  • Win 11 Pro64bit installation
Display Viewing Size Image 18.5"
Active Display Area (mm) 409x230mm
Resolution 1920x1080
Contrast Ratio  1000:1 (typ.)
Color 16.7M
Brightness 350nits
Viewing Angle -89-89 (H); -89-89 (V)
Recommended Resolution 1920x1080 @60Hz
Power Source 12VDC with external 100-240VAC power adapter ( F Type power cord )
Management VESA DPMS Compliant

FORM  FACTOR
ITX (170 * 170mm)
PROCESSOR SYSTEM MEMORY
Intel® Elkhart lake J6412 Quad Core MCP SoC Processor
JLI1BV-0L (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
AMI 128M Flash ROM 		1* DDR4 3200MHz SO-DIMM up to 32GB
STORAGE EXPANSION
1* SATAIII (6.0 Gb/s)
1* M.2 M-key (2242/2280, SATA or NVMe- PCIe x2) 		1* M.2 E-key (2230, support WIFI/BT Module)
1* M.2 B-key (3042/3052, support 4G/5G Module)
1* Nano SIM card slot
ETHERNET GRAPHICS

2* Intel® i225V 2.5GbE  		 Intel® HD Graphics, shared memory
1* VGA (Max Resolution: 1920x1080@60Hz, Co-lay HDMI)
1* LVDS (Max Resolution: 2560x1600@60Hz, Co-lay eDP)
1* eDP (Max Resolution: 4096x2304@60Hz, Co-lay HDMI)
 Support Triple Displays
AUDIO WATCHDOG  TIMER
Realtek HD Audio
3W Speaker Amplifier 		From Super I/O to drag RESETCON#
256 segments (10sec ~ 255min)
INTERNAL  I/O EXTERNAL  I/O
5* USB2.0
2* RS232/422/485
4* RS232
1* SATAIII, 1* SATA Power
3* M.2 (M key + E key + B key)
1* GPIO (8 bit, 5V)
1* AT mode
1* I2C/SMBUS
1* FP_ Audio
1* Speaker
1* TPM2.0 (Option)
1* CPU FAN 		1* VGA
2* RJ45
2* USB3.1 (Gen. 1)
 2* USB2.0
Line-out
MIC
12V DC-in
POWER COMPLIANCE
12V DC-in, AT/ATX Supported CE, FCC, RoHS, REACH
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
TEMPERATURE OS  SUPPORT
Operating Temperature: 0 ~ 60° C
Storage Temperature: -20 ~85° C
Humidity: 10% ~ 90% RH @40°C (non-condensing) 		Windows 10, Windows 11, Linux
