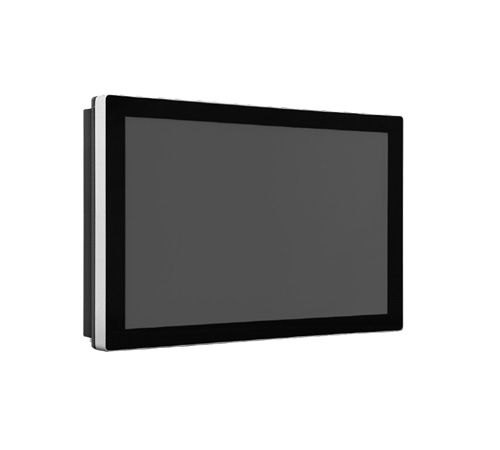

18.5" Chassis/VESA Mount Bezel-Free P-cap Panel PC, i3-6100U, 1000nits, IP65, Wide Temp -40C ~ 80C (Model: EGCW1850HBi3)

18.5" (1920*1080) Chassis/VESA Mount Bezel-Free P-cap Panel PC,Vecow:EMBC-1000-100U, i3-6100U , DC 9~36V, IP65 Aluminum Front Bezel, 2.5" HDD Tray,1920*1080. Brightness 1000 nitsViewing 89/89/89/89 Wide Temp-40~80 C No Memory, Storage and OS. Est.Shipping Weight and Dimensions:67.2*21.2*52cm 14.8KG/pc

18.5" (1920*1080) Chassis/VESA Mount Bezel-Free P-cap Panel PC,Vecow:EMBC-1000-100U, i3-6100U , DC 9~36V, IP65 Aluminum Front Bezel, 2.5" HDD Tray,1920*1080. Brightness 1000 nitsViewing 89/89/89/89 Wide Temp-40~80 C No Memory, Storage and OS. Est.Shipping Weight and Dimensions:67.2*21.2*52cm 14.8KG/pc

Main Feature

    • IP65 / 66 Front Panel
    • Bezel-Free Design
    • 18.5" P-cap Flat Bezel
    • Fanless Design
    • 3-Pin Power Input Terminal Block
    • DC 9~36V Wide Range Power Input
    • 1920*1080 Resolution
    • 1000 nits LED Backlight
    • Lockable HDD Tray
EGCW1850HBi3
  • Specifications
  • Download
  • Contact Sales
SYSTEM
Processor Intel Core i3-6100U
System Memory DDR4 2133 SO-DIMM, up to 32 GB




External I/O Port
4 x USB 3.0
2 x GbE LAN (I210-AT & I219LM, AMT 11.x supported)
1 x Display Port
1 x DVI-D
5 x RS-232422/485 (COM1 default : RS485)
1 x Audio
1 x Power press button
1 x 3-Pin Power Input
1 x Lockable HDD Tray
Storage 2 x SATA3 (6.0Gb/s)
  1 x mSATA (full size mini-PCIe)
Operating 6th Gen CPU for Win 7 Pro/ WES7 / Win 8 / Win 10 7th Gen CPU for Win 10
Expansion 2 x MiniPCIe Slot (1 x Nano Sim Holder)

POWER REQUIREMENT
Power Type 3-Pin Power Input Terminal Block
  DC 9~36V Wide Range Power Input
  Input on board fuse / Input reverse / Over current / Output short circuit protection

TOUCH SCREEN
Type 18.5" P-cap USB

LCD
Display Type 18.5" TFT LCD
Max. Resolution 1920*1080
Max. Color 16.7M
Luminance 1000 nits
View Angle 189/189
Backlight Lifetime 30,000 hours

MECHANICAL
Construction Aluminum Front Bezel and Metal Case
IP Rating Front Panel IP65/ IP66 Compliant
Mounting VESA / Panel Mount
Dimension 448 x 273 x 84

ENVIRONMENT
Operating Temp -40~80 C, IEC-60068-2-1/2/14
Storage Temp -40~80 C
Humidity 10~90% @40 C, non-condensing
EMC FCC / CE Class A Certification
CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64
