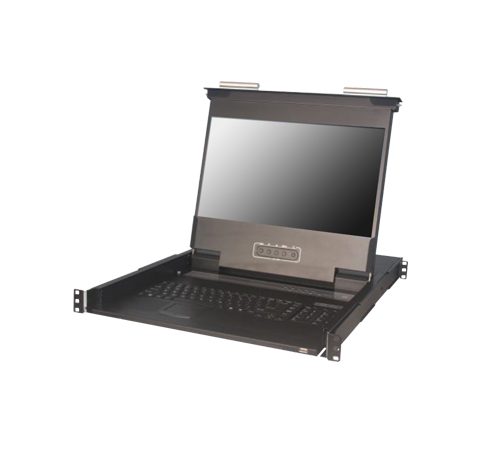

1U 17.3" Wide Dual Slides Rackmount LCD Keyboard Console Drawer, DB15 16 Ports USB KVM (Model: ADRW1730HD-16e)

Dual Slides 1U 17.3" 1920 x 1080 native resolution (can support up to 1920 x 1200 resolution through our AD board)Widescreen Rackmount LCD Keyboard Console Drawer, DB15 16 Ports USB KVM

Dual Slides 1U 17.3" 1920 x 1080 native resolution (can support up to 1920 x 1200 resolution through our AD board)Widescreen Rackmount LCD Keyboard Console Drawer, DB15 16 Ports USB KVM

Main Feature

    • Support USB interface, VGA-USB.
    • Front 1x USB, Rear 2x USB 2.0 Type A ,Sharing USB peripheral
    • Device for computer ( ex, flash disk ,hard driver, KB/Mouse ).
    • Durable 104-key keyboard and touch pad.
    • Quick and simple installation.
    • Self-locking and auto release rails for ultra-convenience.
    • Port selection via push buttons or On-Screen-Display (OSD).
    • Access Control List (ACL) security function for up to 8 independent user accounts.
ADRW1730HD-16e
  • Overview
  • Specifications
  • Download
  • Contact Sales
LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades. The self-locking rails when in the fully extended open position and the ultra-convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.

Available with 17.3" A-Grade LCD panels, combo DB15 8 or 16 port integrated KVM switch & with an option remote IP console. Support USB HUB 2.0 and touch screen enable function.

Features:
  • Support USB interface, VGA-USB.
  • Front 1x USB, Rear 2x USB 2.0 Type A ,Sharing USB peripheral
    Device for computer ( ex, flash disk ,hard driver, KB/Mouse ).
  • Durable 104-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra-convenience.
  • Port selection via push buttons or On-Screen-Display (OSD).
  • Access Control List (ACL) security function for up to 8 independent user accounts.

Optional Remote IP Access
  • An expansion slot allows you to add an optional KVM over IP module to enable remote access to your servers.
  • Gain BIOS level access to your servers for system maintenance, support or failure recovery via secure SSL authentication and encryption.
Direct no. of Computers 16
Maximum no. of Computers 16




LCD
Size 17.3"
Backlight LED
Resolution 1920*1080 Full HD ( support resolution up to 1920x1200 )
Max. color 262K
Luminance 300cd/m2
View Angel (H/V)   140 / 120
Contrast Ratio 3000 : 1
Port Selection Push Button, OSD or Hotkey
Expansion Slot Option for remote IP access
USB HUB Yes, Front 1x USB 2.0 , Rear 2x USB 2.0 Type A for USB Peripheral Device
Touch Screen Yes, for option ( Driver needed )
KB/Mouse Emulation USB
Rack Depth 500mm to 1100mm ( rack cabinet front rails to rear rails )
Power 100-240V AC 50/60Hz via IEC Type power cord


Environment
Operation temp: 0 to 50C
Storage temp: -20 to 60C
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x600mm (WxHxD) / 12.5KG
Packing Dimensions / Gross weights 720x190x800mm (WxHxD) / 18.5KG
Accessory
1.8meter IEC Type Power Cord
