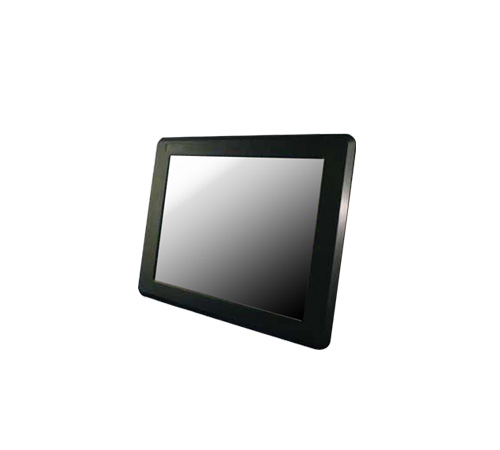

17" Panel Mount 6mm Front Aluminum Bezel True Flat Design High Brightness w/ PCAP Touch (Model: YPM1700PHB2TC-DH1)

17" Panel Mount 6mm Front Aluminum Bezel / True Flat Design / 1280x1024, 1500nits LED / Front IP65 / VGA+DVI+HDMI input / DC 12V Power Input, VESA Mount / 3mm (Anti-UV) PCAP Touch with USB controller (Finger Only) + AG Coating on PCAP Touch

17" Panel Mount 6mm Front Aluminum Bezel / True Flat Design / 1280x1024, 1500nits LED / Front IP65 / VGA+DVI+HDMI input / DC 12V Power Input, VESA Mount / 3mm (Anti-UV) PCAP Touch with USB controller (Finger Only) + AG Coating on PCAP Touch

Inquiry/Quote Request
YPM1700PHB2TC-DH1
  • Overview
  • Specifications
  • Download

Features:
  • 17" SXGA TFT LCD with resolution up to1280 x 1024.
  • Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.
  • Front Bezel IP65 (with glass or touch)
  • Construction Front Panel - High quality aluminum bezel (anodic treatment)

SYSTEM SPECIFICATIONS
Display Type 17" TFT-LCD
Panel
Display Color 16.7M colors
Brightness (cd/m˛) 1500nits
Display Resolution (pixel) SXGA(1280 x 1024)
Viewing Angles (CR≥10) 80/80/60/80
Contrast Ratio 800 : 1
Backlight Unit LED
Response Time (msec) 30ms
Environmental
Operating Temperature -30°C ~ 80°C
Storage Temperature -30°C ~ 80°C
Touch 3mm (Anti-UV) PCAP Touch with USB controller (Finger Only)
