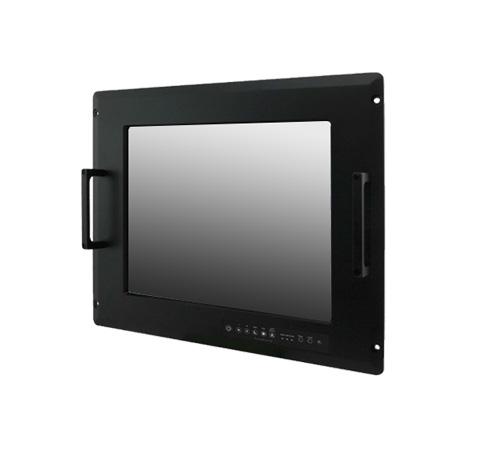

17" Military Console Rack Fanless Panel PC with Intel Core i5-7200U 2.5 GHz, MIL?STD?810G/F Compliant and Resistive Touch (Model: WMPC1700-i5-TR)

17" Military Console Rack Fanless Panel PC with Intel Core i5-7200U 2.5 GHz, MIL?STD?810G/F Compliant and Resistive Touch (Model: WMPC1700-i5-TR)

17" Military Console Rack Fanless Panel PC with Intel Core i5-7200U 2.5 GHz, MIL?STD?810G/F Compliant and Resistive Touch (Model: WMPC1700-i5-TR)

Main Feature

    • 17" SXGA TFT LCD
    • Intel Core i5?7200U 2.5 GHz Processor
    • Anti Corrosion Housing / Fanless
    • Fanless cooling system
    • Compliant with MIL?STD?810G/F, MIL?STD?461E/F
    • Flush Rack / Rack Mount Mechanical Design (8U)
WMPC1700-i5-TR
  • Overview
  • Specifications
  • Download
  • Contact Sales

Features:

  • 17" SXGA TFT LCD
  • Intel Core i5?7200U 2.5 GHz Processor
  • Anti Corrosion Housing / Fanless
  • Fanless cooling system
  • Compliant with MIL?STD?810G/F, MIL?STD?461E/F
  • Flush Rack / Rack Mount Mechanical Design (8U)
  • Convenient On Screen Display Controls
  • AC 110~240 V Power input default
  • Isolation DC 9~36 V Power input (Optional)
  • Built-in light sensor for auto brightness control
  • Military Grade Power Connector (MILDTL38999/1)
DISPLAY
Resolution 1280x1024 Size 17.0 inches
Contrast Ratio 1000:1 Panel Brightness 350 nits
View Angles 85,85,80,80
Touch / Glass AR Protection Glass
5 Wires Resistive Touch (Optional)
5 Wire Resistive with EMI Mesh Filter (Optional)
EMI Glass (Optional)

SYSTEM SPECIFICATIONS
Processor Intel Core i57200U (3M Cache, up to 3.10 GHz)
Intel Core i57300U (3M Cache, up to 3.50 GHz)
Memory 1 x SODIMM, DDR3L 1600 MHz, 4GB
8GB (Optional), 16GB (Optional)
Storage 1 x mSATA SSD 64GB.
mSATA SSD up to 512GB. (Optional)
Ethernet controller Intel Ethernet Controller I211AT +
Intel Ethernet Connection I219LM
Security TPM 2.0 Operating System Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 18.04 (Optional)
ENVIRONMENT
Operating Humidity 10% to 95% RH Operating Temperature -20øC ~ 60øC
Storage Temperature -30øC ~ 70øC
CERTIFICATION
Certification CE, FCC
COMPLIANCE
MIL-STD 461E/F RE101 / RE102
CE101 / CE 101
with EMI Glass / Touch(Optional)
RS101 / RS 103
CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116
MIL-STD 810F/G Vibration Method 514.5
Humidity Method 507.4
Transit Drop Method516.5
IO PORTS
USB Port 2 x USB 3.0 Serial Port 1 x RS232/422/485 (Default RS232)
1 x RS232 (Optional)
Video 1 x HDMI (Optional) LAN 2 x RJ45
MECHANICAL
Dimension 482 x 354 x 80 mm Mounting VESA Mount/ Rack Mount
Enclosure Metal Housing with Aluminum Bezel Coolingÿ System Fanless Design
Accessory User Manual (Hardcopy)
CDROM with Driver Utility
Power Cord MILDTL38999/1

POWER
Power Rating AC 100~240V, Universal, ñ10%
DC 9~36V, ñ10% (Optional)

CONTROL
Button 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock
