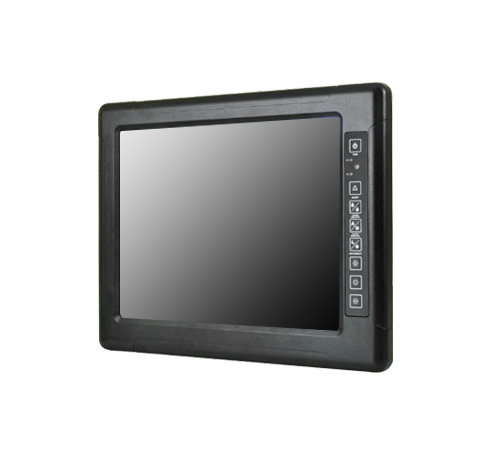

15" Rugged Full IP67 Panel PC, 1024x768, 300nits, Intel Bay Trail N2930 1.83GHz w/ Aluminum Die?Casting Housing, VESA mount and Resistive Touch (Model: WRDPC1500-J-TR)
15" Rugged Full IP67 Panel PC, 1024x768, 300nits, Intel Bay Trail N2930 1.83GHz w/ Aluminum Die?Casting Housing, VESA mount and Resistive Touch (Model: WRDPC1500-J-TR)
Main Feature
- Ultra Low Power Intel Bay Trail N2930 1.83GHz CPU Fanless Design
- High Quality 15" Panel, 1024 x 768 resolution, 300 nits (Optional for 1000 nits)
- IP67 Dust/ Water proof design with VESA mount
- Aluminum Die-Casting Housing with Anti-Corrosion Treatments
- Build in ambient Light sensor
- Wide Range 9 to 36V DC Input with isolation
- Optional 660VDC Input, and Optional for Ignition On/Off delay
- 5 Wire Resistive Touch / Anti-Reflective Protection Glass (Optional)
- Optional HB/Sunlight Readable up to 1000 nits
- Design to meet EN50155
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| DISPLAY | ||||
| Resolution | 1024x768 | Size | 15.0 inches | |
| Contrast Ratio | 2000:1 | Panel Brightness | 300 nits | |
| View Angles | 88,88,88,88 | |||
| Touch / Glass | Resistive Touch Screen Bonding With Panel Protection Glass Without touch function (Optional) |
Optional function | High brightness Panel for sunlight readable (Optional) | |
| SYSTEM SPECIFICATIONS | ||||
| Processor | Intel Celeron N2930 (2M Cache, up to 2.16 GHz) | Memory | 1 x SODIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) | |
| Storage | 1 x mSATA SSD 64GB. mSATA SSD up to 512GB. (Optional) |
Ethernet controller | 2 x Intel Ethernet Controller I210AT | |
| Security | TPM 2.0 | Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) |
|
| WLAN | 802.11 a/b/g/n/ac (Optional) | BT | BT Support (Optional) | |
| ENVIRONMENT | ||||
| Operating Humidity | 10% to 95% RH | Operating Temperature | -15øC ~ 55øC | |
| Storage Temperature | -30øC ~ 70øC | Shock | 30g for 18ms, 300m/sý | |
| Vibration | 1.60/1.96/2.18 g rms for XYZ / 5500Hz | IP rating | IP67 | |
| CERTIFICATION | ||||
| Certification | CE, FCC Class B MIL810F/ IEC60068227 For Vibration /Shock |
|||
| IO PORTS | ||||
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 | Serial Port | 1 x M12 waterproof connector for RS232 | |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
LAN | 1 x waterproof Giga LAN RJ45 connector | |
| MECHANICAL | ||||
| Dimension | 398 x 308 x 58 mm | Mounting | VESA Mount / Yoke Mount | |
| Enclosure | Aluminum Housing | Coolingÿ System | Fanless Design | |
| CONTROL | ||||
| Button | 1 x Power Button 1 x Reset Button 1 x Lock / Unlock front key function button 1 x Auto Dimming / Manually button 1 x Day / Night Mode button 1 x Brightness Up button 1 x Brightness Down button 1 x LED indicator brightness adjustment button 1 x Light sensor |
|||
| ACCESSORIES | ||||
| Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter Driver CD & Manual VESA screws |
Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC Adapter with power cord (Optional) |
|
