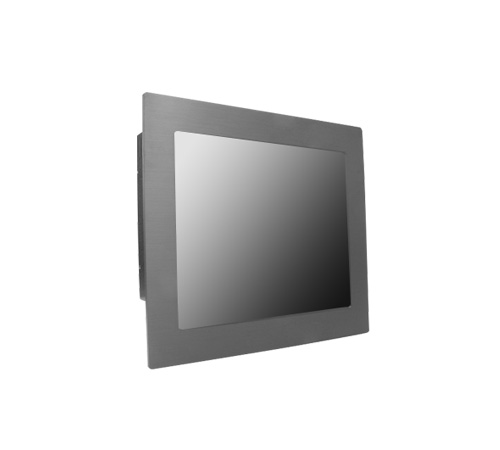

17" IP65 Front Panel PC (Metal-3mm) LCD Monitor w/ MS-98F5 (J1900), 350nits, Rear OSD w/ Touch (Model: CPM1700-J-TR-DC-V2)
IP65 Front Panel PC (Metal-3mm), 17" LCD monitor, 1280 x 1024, 350nits,Rear OSD, including rear screw/Clamp/VESA Mount with 5 Wire Resistive Touch Screen + MS-98F5 ( J1900 ) / RAM 2GB ( 0C~70C ) / SSD 128GB ( 0C ~70C ) + COM port x 2 + DC 24V Input (Built-in). Terminal Block "+" and "-", + Win 10 IoT Ent 2019 LTSC MultiLang ESD OEI Entry
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Intel Celeron Processor J1900 N2930 Quad Core 1.86/2GHz processor
X
Inquiry/Quote Request
- Specifications
- Download
| Panel | Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low reflection coating |
| Aspect Ratio / Size | 4 : 3 / 17" viewable diagonal area | |
| Active Area / Pixel Pitch | 340(H) x 272.5(V) mm / 0.264(H) x 0.264(V) mm | |
| Native Resolution / Colors | 1280(H) x 1024(V) / 16.7 M | |
| Brightness / Contrast | 350 cd/m2 (typ) / 1000 : 1 | |
| Response Time | < 5 ms | |
| Viewing Angle (typical) | H. 170° (- 85° ~ + 85°) , V. 160° (- 80° ~ + 80°) | |
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | |
| Power | Power Input | DC 24V Input (Built-in). Terminal Block "+" and "-" |
| Power Consumption | 42.5 Watt, <1 Watt | |
| Operating Condition | Temperature / Humidity | 0°C ~ 70°C (32°F ~ 158°F) , 10% ~ 90% (no condensation) |
| Dimensions | Physical | Please refer to Drawing |
| Carton | W x H x D = TBD |
| Options | Touch | Video / TV | Enhanced Panel | Others |
| Resistive touch | SV + AV | Panel with LED backlight | Digital Signage(Stand alone) | |
| Capacitive touch | SV + AV + AV_Looping | High brightness panel | Networking Digital Signage | |
| SAW touch | SV + AV + TV | Wide Temperature | Motion Sensor | |
| Infrared touch | Sunlight Readable | Light Sensor | ||
| Protected glass | Auto-Dimming |
Motherboard Specs
| Processor | CPU | Intel Celeron Processor J1900, QC, 10W |
| Frequency | J1900, 2.0 GHz, up to 2.42 GHz | |
| L2 Cache | 2 MB | |
| CPU Type | BGA | |
| Chipset | Integrated | |
| BIOS | AMI | |
| Memory | Technology Max. Capacity | Dual-channel DDR3L 1333/1066 MHz |
| Up to 8GB | ||
| Socket | 2 or 1 x 204-pin SO-DIMMs (depends on SKU) | |
| Display | Controller | Intel HD Graphics |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | |
| LVDS | Daul Channel 24-bit (add chrontel 7511B chipset) | |
| VGA | 1 | |
| Multiple Display | 2 independent displays | |
| Display Interface | VGA up to 2560 x 1600 @60Hz LVDS up to 1920 x 1200 @60Hz | |
| Ethernet | Controller | 2 or 1 x Realtek RTL8111G-CG GbE LAN (depends on SKU) |
| Audio | Controller | Realtek ALC887 HD Audio Codec |
| Super I/O | Controller | Fintek F81866AD-I |
| H/W Monitor | Watchdog Timer Smart Fan | 256-level Watchdog Timer |
| Ye s | ||
| TPM | Controller | Pin header |
| I/O Interface | USB | 8 x USB 2.0 (4 x internal; 4 x rear) |
| Serial | 6 x COM ports (COM1: rear, COM2~6:
internal) COM1: RS-232, 0V/5V/12V COM2~6: RS-232, w/o power |
|
| Parallel | 1 (Pin header) | |
| PS/2 | 1 (Pin header) | |
| GPIO | 8-bits (4 x GPI, 4 x GPO), 3.3V | |
| Expansion Slot |
PCIe x1 | 1 |
| M.2 | N/A | |
| Mini-PCIe | 1 x Full-size (w/ mSATA) | |
| Storage | SATA | 1 x SATA 2.0 |
| mSATA | 1 | |
| Power Supply | DC | DC-in 12V |
| ATX | N/A | |
| Environment | Operating Temperature | 0 ~ 60°C |
| Operating Humidity | 10 ~ 90%, non-condensing | |
| Storage Temperature | -20 ~ 80°C | |
| Storage Humidity | 10 ~ 90%, non-condensing | |
| Form Factor | Dimensions | 170 x 170mm (Mini-ITX) |
| Weight | 0.37 kg | |
| Certification | EMC | FCC, CE, RCM, VCCI, BSMI |
| Software Platform | OS Support | Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (64-bit) |
