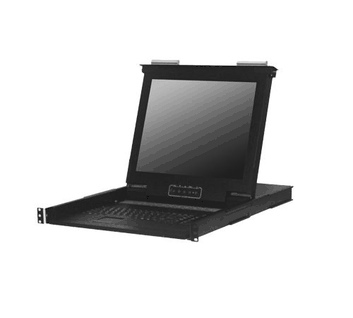

17" A-Grade LCD Panels Combo DB15 16-Port integrated KVM switch w/ 110VDC Input (Model: AVP117S16e-110VDC)

17" A-Grade LCD Panels, Combo DB15 16-Port integrated KVM switch & with an option remote IP console and 110VDC Terminal Block "+" and "-".

17" A-Grade LCD Panels, Combo DB15 16-Port integrated KVM switch & with an option remote IP console and 110VDC Terminal Block "+" and "-".

Inquiry/Quote Request
AVP117S16e-110VDC
  • Overview
  • Specifications
  • Download

Features:
  • Support combo interface, VGA-USB & VGA-PS/2.
  • Durable 104-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra-convenience.
  • Port selection via push buttons or On-Screen-Display (OSD).
  • Dedicated daisy chain port to expand up to 240 servers.
  • Access Control List (ACL) security function for up to 8 independent user accounts.


Optional Remort IP Access:
  • An expansion slot allows you to add an optional KVM over  IP module to enable remote access to your servers.
  • Gain BIOS level access to your servers for system maintenance, support or failure recovery via secure SSL authentication and encryption.
Direct no. of Computers 16
Maximum no. of Computers 240(Daisy Chain)




LCD		 Size 17"
Backlight LED
Resolution 1280*1024
Max. Color 16.7M
Luminance 250cd/m2
View Angel (H/V) 176 / 170
Contrast Ratio 1000 : 1
Port Selection Push Button, OSD or Hotkey
Expansion Slot Yes, option for Remote IP Access
KB/Mouse Emulation USB & PS2
Rack Depth 500mm to 1100mm ( rack cabinet front rails to rear rails )
Power 110VDC Terminal Block "+" and "-".
Environment Operation temp: 0 to 50°C
Storage temp: -20 to 60°C
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x580mm (WxHxD) / 12.0KG
Packing Dimensions / Gross weights 715x140x780mm (WxHxD) / 18.0KG
Accessory
1.8meter IEC Type Power Cord (1.8meter VGA& PS2Cable + 1.8meter USB A Type Cable for AVP117e/119e

Option Relate Item
AB-6 1.8meter 2-in-1 KVM Cable-USB&VGA AC-6 1.8meter 3-in-1 KVM Cable-PS/2&VGA
AB-10 3.0meter 2-in-1 KVM Cable-USB&VGA AC-10 3.0meter 3-in-1 KVM Cable-PS/2&VGA
AB-15 5.0meter 2-in-1 KVM Cable-USB&VGA AC-15 5.0meter 3-in-1 KVM Cable-PS/2&VGA
AIP101 KVM over IP module for Remote Bios Level Access
