17.3" 1U Single Slide Rail LCD keyboard Drawer HDMI , USB KVM Cable, Meets EIA-310C and IEC-3 (Model: YVPW1700HDe-H)

1U Single Slide Rail, 17.3" 1920x 1080 LCD keyboard Drawer HDMI , USB KVM Cable, Meets EIA-310C and IEC-3

1U Single Slide Rail, 17.3" 1920x 1080 LCD keyboard Drawer HDMI , USB KVM Cable, Meets EIA-310C and IEC-3

Inquiry/Quote Request
YVPW1700HDe-H
  • Overview
  • Specifications
  • Download

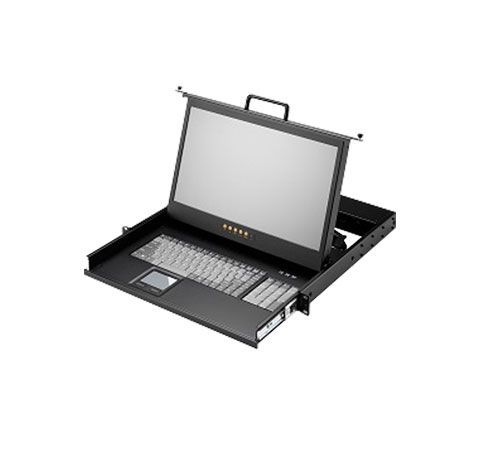

Single Slide Rail LCD Keyboard Drawer (model YVPW1700HDe-H) from i-TechCompany is engineered for seamless integration into server racks, network cabinets, and control stations. It combines a compact form factor with robust performance - featuring a durable steel assembly, smooth sliding rails, and an integrated LCD bracket. This keyboard drawer saves floor space while ensuring reliable access to your console. Whether you're managing data center deployments, industrial control panels, or network operations, the YVPW1700HDe-H offers a space-efficient and ergonomic solution for rack-based keyboard and display needs.


Features:
  • 1U, single slide rail 17.3" LCD KB drawer
  • Complies with EIA-310C and IEC-3 specifications
  • 1U single-slide rail LCD keyboard drawer
  • Integrated 17.3" LCD monitor with 1920x1080 resolution
  • HDMI input for LCD display
  • USB industrial keyboard with built-in touchpad
  • Short-depth and lightweight 1U design
  • Secured by two thumb screws for monitor stability
  • Built-in rail self-locking mechanism
  • Tempered glass protects the LCD screen
Construction Heavy-duty steel
Drawer Design 19" rackmount, 1U, Single slide rail for extraction of both panel and keyboard
Display 17.3", 1920x 1080 resolution with tempered glass
Protection Tempered glass protect LCD screen
Physical security 2 thumb screws to secure LCD monitor
Ports switch HDMI input, USB KB/MS
Keyboard Industrial keyboard with touchpad
Power supply Built-in 60W, 90~264VAC, Operating temp.: -20~70°C
Power consumption 3 watts stand-by, 25 watts in-use
Dimension 442.4x 44x 411.8mm (Wx Hx D)
Weight 10 kgs
KVM cable HDMI/ USB

Environment  Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~90%
Approval CE, FCC, RoHS
