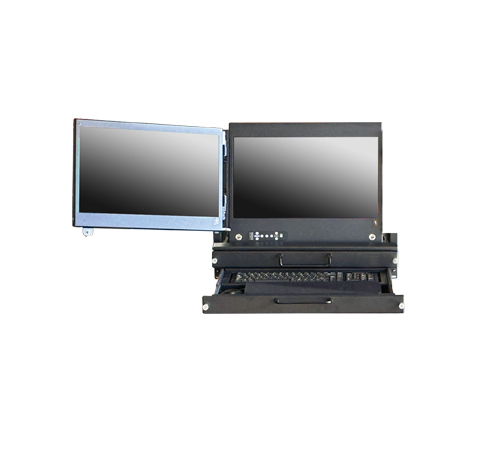

17.3" 1000nits LCD Center & Left Military Grade Rack Drawer 3U Lay Flat Panel w/ HDMI, DP, VGA (Model: Mil-RP2DW17HBb)

17.3" LCD 24" Frame Static Ready With General Devices C300 Mil Spec Friction Rugged Solid Bearing Slide With our Milled 6061 T6 Rear Arms Video input put screen HDMI, DP, VGA

17.3" LCD 24" Frame Static Ready With General Devices C300 Mil Spec Friction Rugged Solid Bearing Slide With our Milled 6061 T6 Rear Arms Video input put screen HDMI, DP, VGA

Inquiry/Quote Request
Mil-RP2DW17HBb
  • Overview
  • Specifications
  • Download
The MIL-RP2DW17HBB is a rugged 17-inch military-grade rack drawer featuring a center-left dual display configuration in a compact 3U lay-flat design. Built for mission-critical defense, aerospace, naval, mobile command, and industrial applications, it combines a durable all-aluminum construction with high-performance LCD displays for reliable operation in harsh environments. Designed to maximize rack space while providing excellent accessibility, the system supports multiple video input options and is engineered to withstand shock, vibration, and demanding field conditions.


Features:
  • Display: 17.3" Widescreen (1920x1080) LCD Center and Left High Bright Panel 1000 to 1500 Nits
  • Display Enhancement: EMI Micro Mesh Chem Strengthened Cover Glass, Mil 461 EMI Filter
  • Optically Bonded Controller: Rugged Grade Controller Formal Coating on Board Electronics with NanoFlowX
  • Keyboard: M7U (Mil-STD-461-G) 116 Key NEMA Keyboard 25mm Sealed Trackball (USB) 3 Button Pointer
  • Operation Temp: -40° to +70°, 100% Humidity
  • Handle/F: Thumb screw Collapsible Handle
  • Mil Power: 12 VDC Operation Circular C90 2 Pin MIL Connector for Power Input Integrated Cooling Dynamic Dimming
  • Options Mil Power: 9-36 VDC Operation (Integrated DC to DC Converter) MIL Standard Touch
  • Designed To Meet MIL-STD: Operational Temperature Range: MIL-STD-810F/G, -10C to +50C (*Method and Procedures TBD)
  • Storage Temperature: MIL-STD-810F/G, -30C to +60C (*Method and Procedures TBD)
  • Humidity: MIL-STD-810F/G, (*Method and Procedures TBD)
  • Altitude: MIL-STD-810F/G, (*Method and Procedures TBD)
  • Vibration: MIL-STD-810F/G, -167, or -516.2 (*Method and Procedures TBD)
  • Shock: MIL-STD-810F/G EMI: MIL-STD-461F/G
LCD Display
Size 17.3"
Brightness 1500nits
Resolution 1920x1080
Response Time 20ms
KVM Switch
Video Input HDMI, DP, VGA
KB and Mouse Input USB
