17" 1920x1200, LED-250nits Fanless IP65 Front Panel Mount Panel PC w/ i5-1135G7 CPU, Resistive Touch (Model: EMCW1700X-i5-V2)

IP65 Front Panel Mount, 17" LCD Monitor, 1920x1200, LED-250nits, WV(170°/170°), AC-IN w/ Built-in PWR Built-In 5-Wire Resistive Touch Intel H510 System Chipset for 11 Gen. i5-1135G7 CPU (8M Cache, 4.20 GHz, 4C/8T, 10nm, 35W) installed, Fanless solution

IP65 Front Panel Mount, 17" LCD Monitor, 1920x1200, LED-250nits, WV(170°/170°), AC-IN w/ Built-in PWR Built-In 5-Wire Resistive Touch Intel H510 System Chipset for 11 Gen. i5-1135G7 CPU (8M Cache, 4.20 GHz, 4C/8T, 10nm, 35W) installed, Fanless solution

Inquiry/Quote Request
EMCW1700X-i5-V2
  • Overview
  • Specifications
  • Download

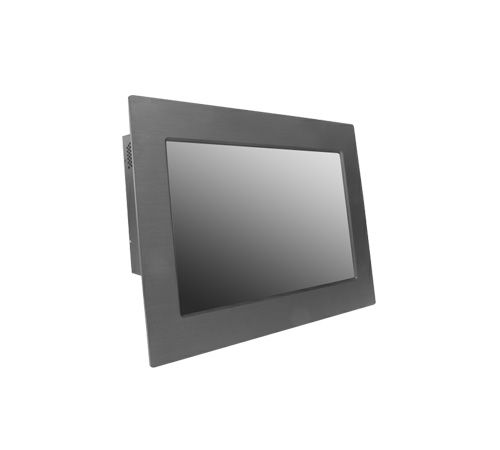

The EMCW1700X-I5-V2 is a rugged 17-inch fanless panel PC from iTech, designed for demanding industrial and outdoor environments. Built with an IP65-rated front panel and a high-performance Intel Core i5 processor, this panel mount system delivers reliable computing power in dusty, wet, or vibration-prone settings. Its fanless architecture ensures silent operation and reduces maintenance, making it ideal for automation, control systems, and harsh environments requiring durable and long-lasting computing solutions.


Features:
  • 17" LCD display, 1920x1200 resolution
  • 250 nits LED backlight
  • Wide viewing angle: 170° (H) / 170° (V)
  • IP65 front panel mount
  • 5-wire resistive touch screen (built-in)
  • Intel H510 chipset
  • Intel Core i5-1135G7 CPU (4C/8T, 8MB cache, up to 4.20GHz, 10nm, 35W)
  • Fanless cooling solution
  • AC power input with built-in power supply
  • Memory: 4GB RAM
  • Storage: 500GB SSD
  • I/O: 2x HDMI, 6x USB3.0, 2x LAN, 2x RS232
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 17" viewable diagonal area
Active Area 367.2(H) x 229.5(V) mm
Pixel Pitch 0.255(H) x 0.255(V) mm
Native Resolution 1920(H) x 1200(V)
Colors 262 K
Brightness 250
Contrast 600 : 1
Response Time ≤ 16 ms
Viewing Angle (typical) H. 170°(- 85°~ + 85°) , V. 170°(- 85°~ + 85°)
Light Source CCFL backlight, Long life, 50,000 hrs (typ)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption 24.15 watt , < 1 watt

SYSTEM
CPU Intel Core i5-1135G7 CPU (4C/8T, 8MB cache, up to 4.20GHz, 10nm, 35W)
BIOS UEFI
System / Graphic Chipset Intel Iris Xe Graphics
System Memory 4GB RAM
Storage 500GB SSD
I/O port 2 x HDMI, 6 x USB3.0, 2 x LAN, 2 x RS232
Expansion 1*M.2 Key-M (NVMe SSD 2280), 1*M.2 Key-B, 1*M.2 Key-E
Dimensions
Physical Please refer to Drawing
Carton W x H x D = TBD
Operating Condition
Operating /Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
