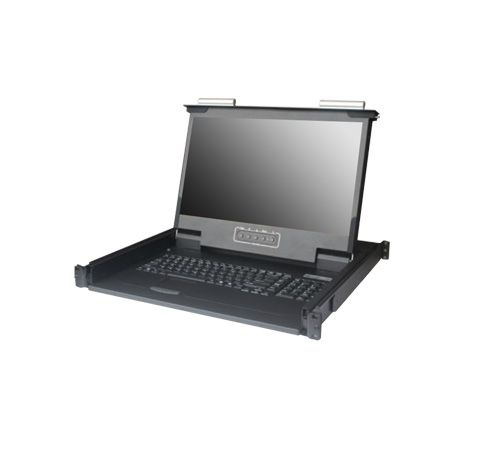

17.3" FHD 1920x1080, 300nits CAT6 LCD Console Drawer with IP Module, 8 Ports (Model: AVPW17308CIPe)

Integrated with 17.3" FHD 1920x1080, 300nits LCD Panel 8 Ports CAT RJ45 KVM, Support interface VGA-USB, Built in IP Module for Remote Access

Integrated with 17.3" FHD 1920x1080, 300nits LCD Panel 8 Ports CAT RJ45 KVM, Support interface VGA-USB, Built in IP Module for Remote Access

Inquiry/Quote Request
AVPW17308CIPe
  • Overview
  • Specifications
  • Download
The 17-inch CAT6 LCD Console Drawer, model AVPW17308CIPE from iTech, combines convenience and durability for IT professionals managing servers. This versatile console is designed with an integrated CAT6 KVM switch for streamlined connectivity and secure, remote access to multiple servers. Its robust, rackmountable build, crisp LCD display, and compact, fold-out design make it an ideal solution for data centers and server rooms requiring efficient monitoring and management tools.


Features:
  • Integrated with 17.3" FHD 1920 x 1080 LCD panel.
  • Support interface VGA-USB.
  • Up to 40 meters between Servers to KVM.
  • Built in IP module for remote access (remote user video resolution up to 1920 x 1080 @ 60Hz).
  • Additional one USB Local console to add local KB/Mouse & VGA.
  • Durable 104-key keyboard and touch pad.
  • Quick and simple installation.
  • Self-locking and auto release rails for ultra-convenience.
  • Port selection via push buttons or On-Screen-Display (OSD).
  • Dedicated daisy chain port to expand up to 256 servers.
  • Access Control List (ACL) security function for up to 8 independents user accounts.
  • No Speakers
Direct no. of Computers 8
Maximum no. of Computers 232(Daisy Chain)
LCD Size 17.3"
Backlight LED
Resolution 1920*1080
Max.color 262K
Luminance 300cd/m2
View Angel (H/V) 140 / 120
Contrast Ratio 650 : 1
Port Selection Push Button, OSD or Hotkey
USB Local console Yes, USB x2 for KB/ Mouse, VGA x1
IP Module Yes, remote user video resolution up to 1920 x 1080 @ 60Hz
Max. Computer Distance 40 meters (Servers to KVM)
KB/Mouse Emulation USB
Rack Depth 500mm to 1100mm (rack cabinet front rails to rear rails)
Power 100-240V AC 50/60Hz External Power Adapter
Environment Operation temp: -10 to 55℃
Storage temp: -20 to 60℃
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x580mm (WxHxD) / 12.0KG
Packing Dimensions / Gross weights 715x140x780mm (WxHxD) / 18.0KG
Accessory
1.8meter IEC Type Power Cord
