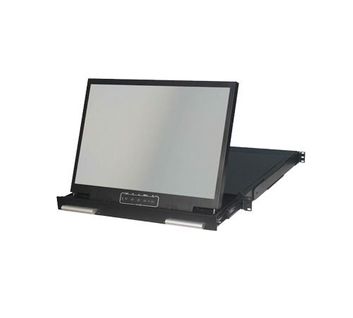

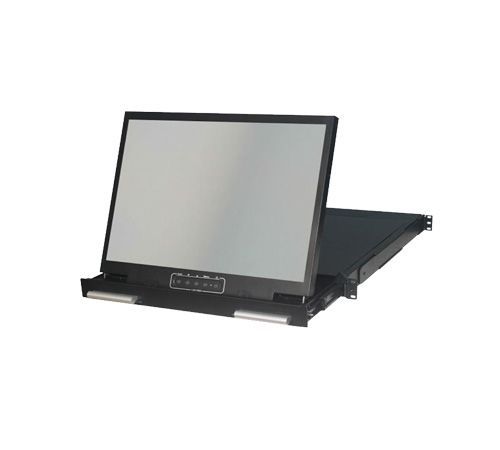

1U Rackmount Wide 17.3" TFT LCD Rackmount Monitor Drawer w/ VGA + DVI-D, Audio input (Model: ANPW117)

1U Rackmount Wide 17.3" TFT LCD Rackmount Monitor Drawer 1920x1080, 300nits LCD, with VGA + DVI-D Audio input Chassis Depth is 425 mm

1U Rackmount Wide 17.3" TFT LCD Rackmount Monitor Drawer 1920x1080, 300nits LCD, with VGA + DVI-D Audio input Chassis Depth is 425 mm

Inquiry/Quote Request
ANPW117
  • Overview
  • Specifications
  • Download
The 17-Inch 1U TFT LCD Rackmount Monitor Drawer (Model: ANPW117) from iTech is a space-efficient solution designed for IT professionals seeking to maximize rack space without compromising on functionality. Housed in a slim 1U chassis, this monitor drawer features a 17-inch high-resolution TFT LCD screen and supports multiple video inputs including VGA and DVI. Built for durability and ease of use, the ANPW117 is ideal for server rooms, data centers, and control systems that demand reliable and compact visual interface solutions.


Features:
  • 1U Foldable Compact 19 inch rack mountable
  • 17.3 inch wide screen 1920x1080 Ultra high resolution
  • Support FHD with 1080p resolution
  • DVI-D, VGA, Audio input
  • Heavy duty steel chassis construction
  • Front osd control buttons to optimized display
  • Build in 2x 2watts stereo speakers


Options:
  • Composite video input
  • HDMI or Display Port Input
  • 3G / HD / SD-SDI broadcast grade input
  • DC 9~36V power input
  • AR Hardness glass
  • Touch screen
LCD CHARACTERISTICS
Screen Size 17.3"
Backlight Type LED
Resolution 1920*1080
Contrast Ratio 400:1
Brightness ( cd/m2 ) 300
View Angles ( H/V ) 140/120
Pixel Size ( HxV ) mm 0.1989x0.1989
Max. Color 262K

INPUT SIGNALS
DVI-D DVI-D 24Pin Connector (Female)
VGA D-SUB 15Pin Connector (Female)
HDMI x1
Audio 3.5" Jack
Power Input Standard IEC Inlet
Touch-USB ( option ) USB A Type connector
Touch-RS232 ( option ) D-SUB 9P connector ( Female )

POWER SPECIFICATIONS
AC Power Input Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Wide Range DC Power Input ( option ) Screw Type Terminal Block with internal
wide Range DC 9-36V power module

USER CONTROL INTERFACE
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons

MECHANICAL AND ENVIRONMENT
Height 1U Foldable
Rack Depth 15.5" to 30" ( cabinet front rail to rear rail )
Mounting Rack Mount
Construction Metal Housing
Operating Temperature 0 - 50 deg. C
Operating Humidity 5% - 95% ( non -condensing )
Anti-Vibration 5 - 500 Hz / 1 Grms PTP
Anti-Shock 15G / Peak ( 11 ms )
Physical Dimension (WxHxD) 443 x 44 x 425 (mm)
Packing Dimension (WxHxD) 715 x 140 x 600 (mm)
Net Weight / Gross Weight 12.5 / 17 (KGs)
Certification and Approvals CE / FCC / RoHs
