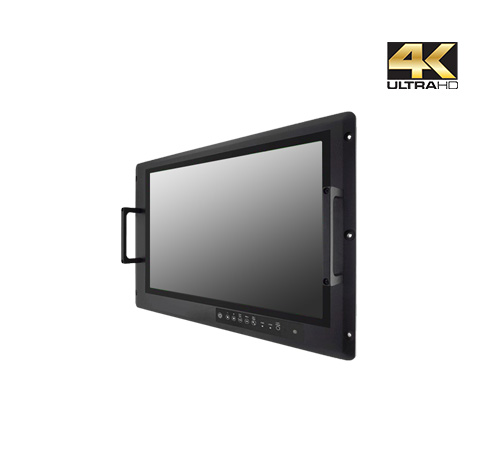

15.6" 4K Display UHD PCAP Rack Mount Defence Display w/ MIL­STD 810G/ MIL­STD 461E, AC 100~240V (Model: WMRMW1560K-PCAP)

15.6" Display with UHD PCAP Rack Mount Defence Display (3840 x 2160) native resolution w/ Compliant MIL­STD 810G/ MIL­STD 461E, AC 100~240V

15.6" Display with UHD PCAP Rack Mount Defence Display (3840 x 2160) native resolution w/ Compliant MIL­STD 810G/ MIL­STD 461E, AC 100~240V

WMRMW1560K-PCAP
  • Overview
  • Specifications
  • Download

Features:

  • 15.6" Display with UHD PCAP Rack Mount Defence Display (3840 x 2160) native resolution
  • Compliant MIL­STD 810G/ MIL­STD 461E
  • Rack mount mechanical design, supports VESA mount
  • PCAP multi­touch screen
  • Military­grade power connector (MIL­DTL­38999/1)
  • AC 100~240V, Universal, ±10%? DC 9~36V, ±10% (Optional)
  • Convenient on­screen display controls
DISPLAY
Touch / Glass Projected Capacitive Multi Touch Screen
PCAP with With ITO Flim (Optional)
Resolution 3840x2160
Size 15.6 inches Contrast Ratio 1400:1
Panel Brightness 500nits Display Color 1073.7M Colors
View Angles 89,89,89,89 Active Area 344.217 x 193.762 mm
ENVIRONMENT
Operating Humidity 10% to 95% RH Operating Temperature 0°C ~ 50°C
Storage Temperature -25°C ~ 60°C
COMPLIANCE
MIL-STD 461E/F RE101 / RE102
CE101 / CE 101
with EMI Glass / Touch (Optional)
RS101 / RS 103
CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS116
MIL-STD 810F/G Vibration Method 514.5
Humidity Method 507.4
Transit Drop Method516.5
CERTIFICATION
Certification CE, FCC
IO PORTS
USB Port 1 x USB for Touch Screen (Optional) Serial Port 1 x RS232 for Remote Control (Optional)
Video 1 x VGA
1 x DVI
1 x Display Port 1.2
1 x HDMI 1.4 (Optional)
1 x HDMI 2.0 (Optional)
Audio 1 x Audio Line In (Optional)
MECHANICAL
Dimension 457.6 x 287.7 x 68.8 mm Mounting VESA Mount/ Rack Mount
Enclosure Metal Cooling  System Fanless Design
Accessory 1 x User Manual(Hardcopy) 1 x Power Cord MILDTL38999/1, 1 x VGA Cable
1 x DVI Cable , 2 x HDMI Cable, 1 x DP Cable
Optional Accessory 1 x Auido cable
POWER
Power Rating AC 100~240V, Universal, ±10%
DC 9~36V, ±10% (Optional)

CONTROL
Button 7 key: Power, Decrease, Increase, Exit/ Auto, Menu, Day/ Night, Lock/ Unlock
