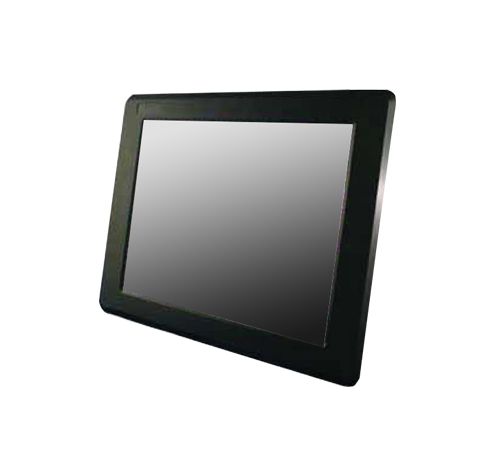

15.6" True Flat Touch Monitor Front IP65 1000nits w/ VGA, DVI, HDMI, PCAP Touch. Wide Temp (Model: YCHW1560HBWT-FPCT)

15.6" / True Flat Design / Front IP65 / 1920x1080 / 1000nits LED, VGA+DVI+HDMI input / 2W Speaker / 3mm AG Coating Glass PCAP Touch (10-points in Windows7, 10) with USB controller, Operating Temperature -30 ~ +85°C, Hardness of surface 7H, VESA Mount

15.6" / True Flat Design / Front IP65 / 1920x1080 / 1000nits LED, VGA+DVI+HDMI input / 2W Speaker / 3mm AG Coating Glass PCAP Touch (10-points in Windows7, 10) with USB controller, Operating Temperature -30 ~ +85°C, Hardness of surface 7H, VESA Mount

Inquiry/Quote Request
YCHW1560HBWT-FPCT
  • Overview
  • Specifications
  • Download

Features:
  • High contrast color TFT-LCD Monitor support resolution up to 1920*1080.
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting adjustment.
  • Heavy duty monitor with steel frame.
  • Hardness of surface 7H
  • VESA Mount
Panel Type 15.6-inch TFT LCD
Screen Diagonal 15.6-inch
Active Display Area (mm) 344.2(H) x 193.56(V)
Pixel Pitch (mm) 0.17925 x 0.17925a
Number of Pixels 1920 x 3(RGB) x 1080
Contrast Ratio 500:1
Display Color 16.2M Colors ( RGB 6-bits +2FRC)
Brightness (cd/m) 1000 cd/m
Viewing Angle(Typ.) 70 / 70 / 60 / 60 ( R/L/U/D)
Signal Connector VGA + DVI + HDMI
Power Source DC +12V (+/-10%)
Power Management VESA DPMS Compliant
Operating Temperature -30 ~ +85°C
Storage Temperature -20 ~ +70°C
Plug & Play VESA DDC 1/2B
Touch Type PCAP Touch with USB Controller
    Transparency > 85% (typ.)
    Hardness of surface 7H
    Linearity ±1.5%(max.)
Other option:
DC 9-36V Wide Voltage Input
