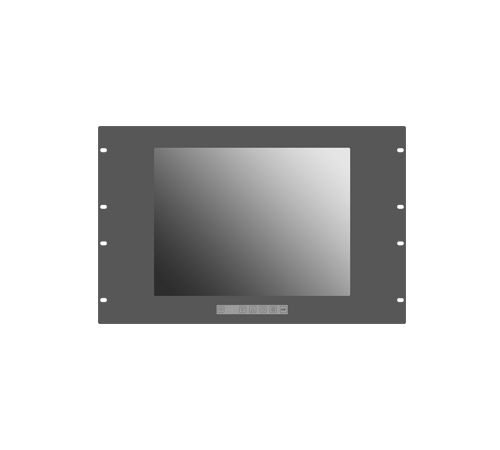

15" 1500nits 7U Rackmount LCD Wide Temp, VGA, DVI, HDMI w/ 5 Wire Resistive Touch (Model: YRM1500HB2WT-TR)

Sunlight Readable 7U RACKMOUNT LCD (2mm Metal Front Bezel) 15"-1024x768, LED-1500nits, Wide Temp (-30~85 Degree), Operating and Storage - 30C to 85C,Viewing angle H 80/80 V70/80, Optical Bonding VGA+DVI+HDMI input ports Front OSD Brightness Control and w/o Handle, VESA Mounting & Built in Power Supply with 5 Wire Resistive Touch Screen and USB Controller

Sunlight Readable 7U RACKMOUNT LCD (2mm Metal Front Bezel) 15"-1024x768, LED-1500nits, Wide Temp (-30~85 Degree), Operating and Storage - 30C to 85C,Viewing angle H 80/80 V70/80, Optical Bonding VGA+DVI+HDMI input ports Front OSD Brightness Control and w/o Handle, VESA Mounting & Built in Power Supply with 5 Wire Resistive Touch Screen and USB Controller

Inquiry/Quote Request
YRM1500HB2WT-TR
  • Overview
  • Specifications
  • Download

Features:
  • High contrast color TFT-LCD Monitor support resolution up to 1024*768.
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting adjustment.
  • Heavy duty monitor with steel frame.
  • Custom design by request.

ITEM SPECIFICATION
Panel Type 15.0-inch TFT LCD
Screen Diagonal 15.0-inch
Active Display Area (mm) 304.128(H) x 228.096(V)
Pixel Pitch (mm) 0.297(per one triad) x 0.297
Number of Pixels 1024 x 3(RGB) x 768
Contrast Ratio 800:1
Display Color 262K / 16.2M Colors
Brightness (cd/m) 1500 cd/m (Without Touch Screen)
Viewing Angle(Typ.) 80 / 80 / 70 / 80 ( R/L/U/D)
Signal Connector 15 PIN D-Sub,DVI-D,HDMI
Power Source AC 100~240V,Universal(+/-10%)
Power Management VESA DPMS Compliant
Operating Temperature -30 ~ +85°C
Storage Temperature -30 ~ +85°C
Plug & Play VESA DDC 1/2B
Touch Type 5-Wire Resistive Touch Screen (USB Type AInterface)
Transparency > 80% (typ.)
Hardness of surface 3H
Linearity ±1.5%(max.)
Speaker 2 Watts x 2
Optical Bonding
