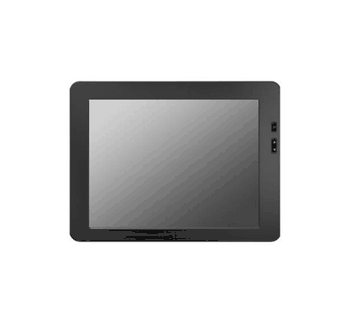

All Weather 15" Rugged Display, LVDS Input, XGA Resolution (1024 x 768), LED Backlight, Sunlight Readable, IP67 Sealed, 12-36Vdc (Model: DOD1500V2L)

All Weather 15" Rugged Display, LVDS Input, XGA Resolution (1024 x 768), LED Backlight, Sunlight Readable, IP67 Sealed, 12-36Vdc (Model: DOD1500V2L)

All Weather 15" Rugged Display, LVDS Input, XGA Resolution (1024 x 768), LED Backlight, Sunlight Readable, IP67 Sealed, 12-36Vdc (Model: DOD1500V2L)

Main Feature

    • (1) LVDS Input
    • Sealed Connectors
    • USB Pass-Through
    • LED Backlight (Extreme 3000:1 Dimming Ratio)
    • Anti-Reflective and Anti-Glare Treatments
    • Enhanced Sunlight Readability
    • IP67/NEMA 6 Enclosure
DOD1500V2L
  • Overview
  • Specifications
  • Download
  • Contact Sales

Standard Features

  • (1) LVDS Input
  • Sealed Connectors
  • USB Pass-Through
  • LED Backlight (Extreme 3000:1 Dimming Ratio)
  • Anti-Reflective and Anti-Glare Treatments
  • Enhanced Sunlight Readability
  • IP67/NEMA 6 Enclosure

Optional Features

  • Analog (RS232 or USB) Resistive Touch Screen
  • XGA Resolution (1024x768)
  • Internal Heaters

Mounting Options

  • Panel Mount
  • RAM Mount
LCD Size Resolution Nits Viewing Angle Contrast Ratio Maximum Power Consumption
15" TFT AM LCD XGA (1024x768) 800 nits 160 (H) x 140 (V) 800:1 40 Watts
Technical Specifications
Display 8-bit color, 16,777,216 colors, TFT AMLCD (Thin-Film Transistor Active-Matrix Liquid-Crystal Display)
Dimming Ratio 3000:1
Video Input LVDS (1)
Connectors* Molex, Amphenol
Housing Milled AL, Black Anodized, UV Clear Coat
Mounting Options Panel or RAM; Quoted individually
Wide Range DC Power Input 10-36 VDC (12,24,28 VDC nominal)
Power Conditioning Protected against Internal Short Circuit, Load Dump, Over Voltage and Reverse Polarity
Environmental Specifications
IP Rating IP67 (NEMA 6 Submersible)
Operating Temperature -20C to 71C (-4F to 160F) - (-40C with heater option)
Storage Temperature -51C to 71C (-60F to 160F)
Humidity 0-100%
Shock 50G
Vibration 5.8 G (5-500 Hz)
Altitude 45,000 ft.
EMI Designed to meet FCC B, CE
