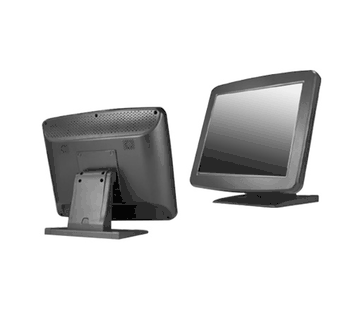

Plastic Monitor, 15"-1024x768, LED-1500nits, VGA, 5RT (3mm, RS232) 9~36VDC (Model: MTLB-EP1500HB2-TR)

Plastic Monitor, 15"-1024x768,LED-1500nits, VGA, 5RT (3mm,RS232) Auto-dimming-Light Sensor, Black Color 9~36VDC input with Terminal Block

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector with optional AV,SV,AV-Looping
Complete custom design/solution for OEM customers
Auto Power On: Monitor is always "ON" when connect to power.
Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	4 : 3/15" viewable diagonal area
	Active Area / Pixel Pitch	304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
	Native Resolution / Colors	1024(H) x768(V)/16.2 M
	Brightness / Contrast	1500cd/m2(typ) / 700 : 1
	Response Time	<35 ms
	Viewing Angle (typical)	H. 140° (- 70° ~ + 70°) , V. 120°(- 60° ~ + 60°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp.p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv: 50 -75Hz
	Audio System	Optional
Input Terminals	1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	9-36VDC input with Terminal Block
Power Consumption	Operation / Power Saving	20 watt, < 2 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification		FCC,CE
Dimensions	Physical	Please refer to Drawing
	Carton	WxHxD=TBD
Weight	N.W./G.W.	4 Kgs/5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
