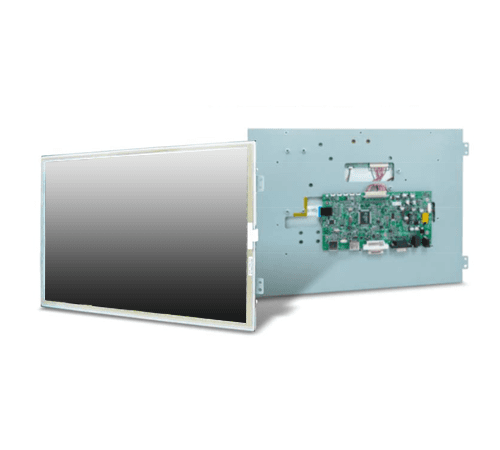

15" 4:3 Open frame Kit Digital TFT LCD, Input Signal VGA,DVI-D/ HDMI 1.3a w/ 5 Wires Resistive Touch Panel (Model: FCOP1500-TR)
15" Openframe Kit Digital TFT LCD, Aspect Ratio: 4:3, Input Signal VGA / DVI-D/ HDMI 1.3a with 5 Wires Resistive Touch Panel
Main Feature
- 15" (1024x768) Digital TFT LCD
- Aspect Ratio: 4:3
- Input Signal VGA / DVI-D/ HDMI 1.3a
- Maximum Support Resolution 1920x1080
- Stereo Audio Amplifier, Output 2W@4Ω Speaker
- Audio Line-In
- 5 Wires Resistive Touch Panel
- 5 Key Buttons Control
- 9 Language OSD Menu
- LED Backlight
- Single Operation Voltage +12V
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| LCD Panel | |
| Panel Size | 15" |
| Resolution (Pixels) | 1024x768 |
| Color | 16.2M |
| Luminance without RTP | 250 cd/㎡ |
| Luminance (RTP) | 200cd/㎡ |
| Contrast Ratio | 700 |
| View Angle | 80 / 80 / 70 / 70 |
| LED Life Time | 50K (Min) |
| Power Requirement | |
| Power Input (DC Jack 2.1ψ) | +12 VDC |
| Power Consumption@+12V | 12.7Watts (@Without Amplifier) |
| Touch Screen | |
| Resistive Type | USB / RS232 Interface |
| Resistive Type Support OS | Windows / Linux / DOS / Mac / QNX |
| Input Signal | |
| VGA | D-Sub15 |
| DVI | DVI-D |
| HDMI | 1.3a |
| Audio | |
| Amplifier | 1W@8Ω / 2W@4Ω |
| Line-In | Stereo Input Phone Jackψ3.5 |
| Controls | |
| Key | 5 Buttons |
| Serial Remote Control | UART / RS232 (Option) |
| Environment | |
| Without RTP | |
| Temperature Range | |
| Operating | -20~+70°C |
| Storage | -30~+70°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C/ 85% |
| 5W RTP | |
| Temperature Range | |
| Operating | -10~+70°C |
| Storage | -30~+70°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C/ 85% |
